Section 11 (Engine Cooling System (1GR-FE)): Radiator: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE RADIATOR SUPPORT TO FRAME SEAL LH

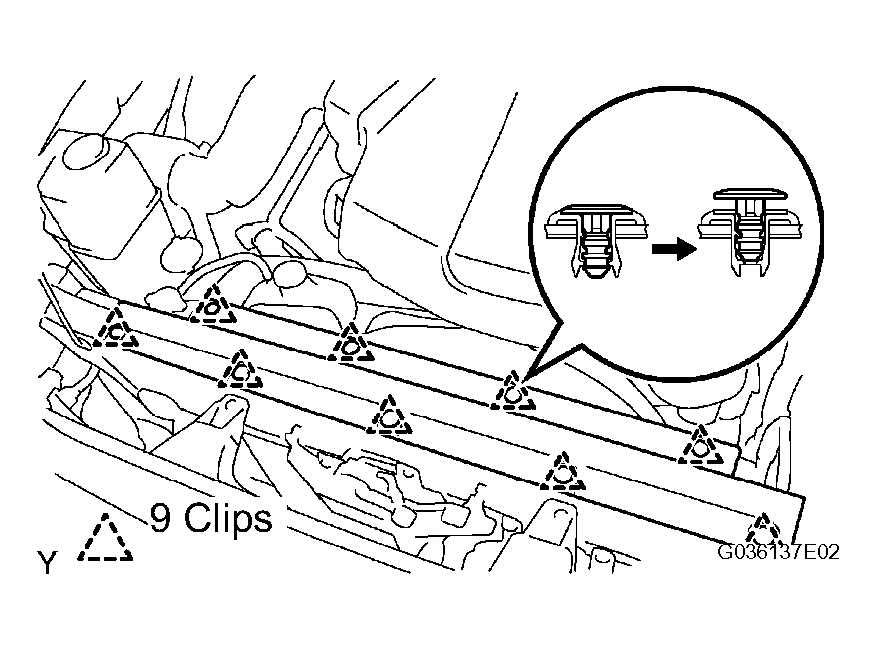

1. Disengage the 9 clips, then remove the radiator support to frame seal.

  Fig 1: Removing Radiator Support To Frame Seal LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FAN SHROUD

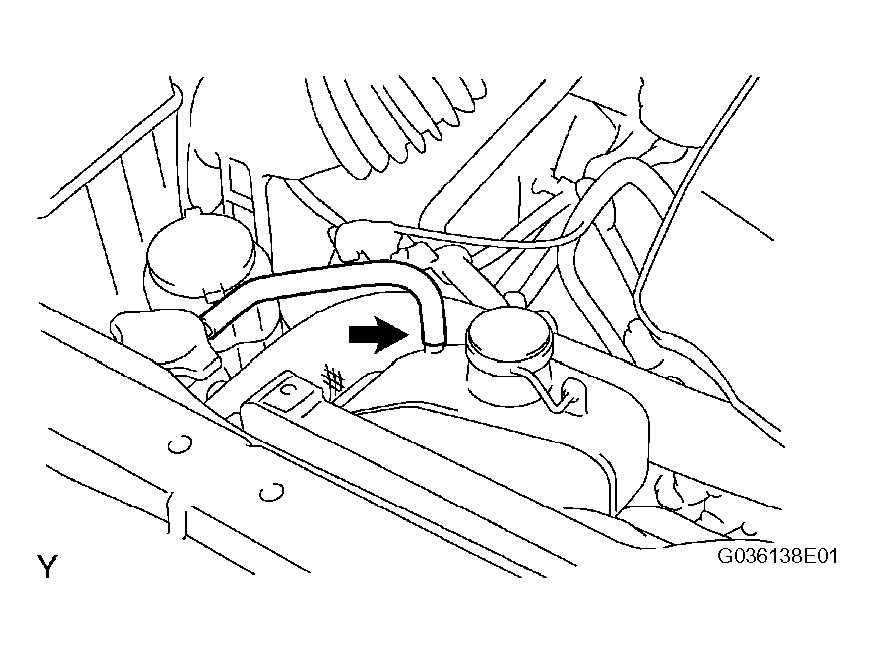

1. Disconnect the hose from the radiator reserve tank.

  Fig 2: Disconnecting Hose From Radiator Reserve Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

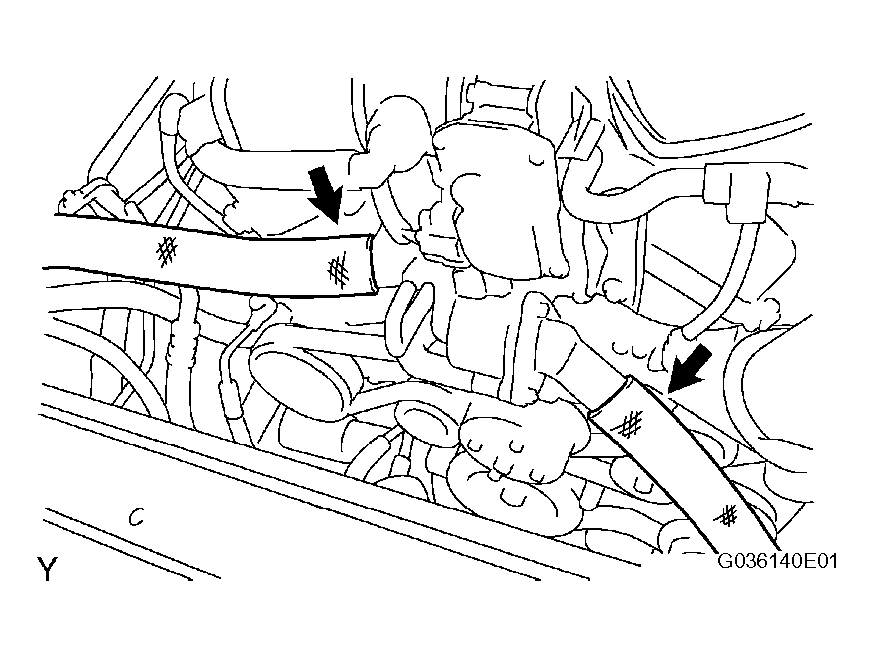

2. Remove the 2 cooler hoses from the clamp (with automatic transmission).

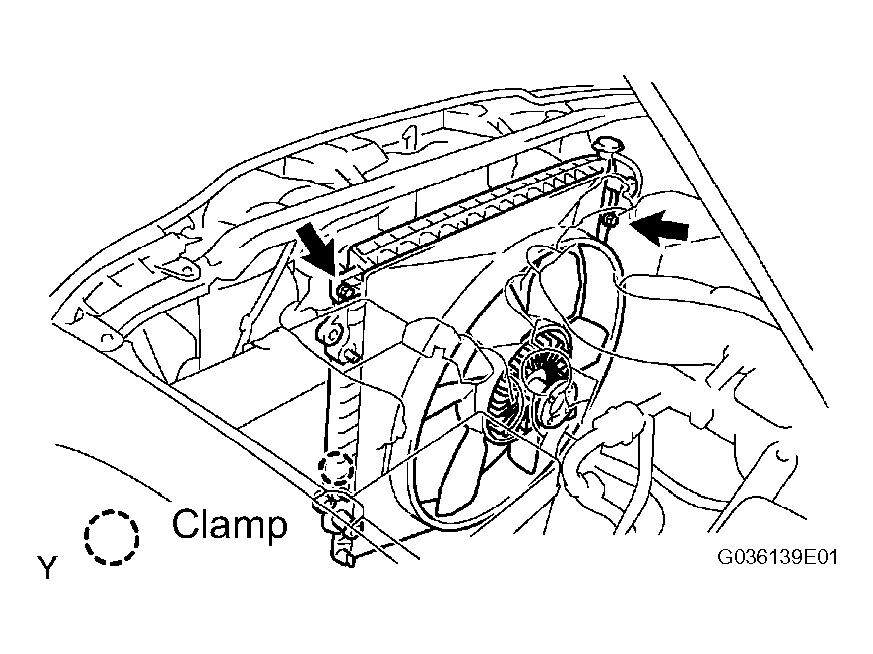

3. Remove the 4 nuts from the fan pulley.
4. Remove the fan and generator V belt (see DRIVE BELT ).
5. Remove the 2 bolts from the fan shroud.
6. Remove the fan pulley and fan shroud.

  Fig 3: Removing Cooler Hoses From Clamp (With Automatic Transmission)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR ASSEMBLY

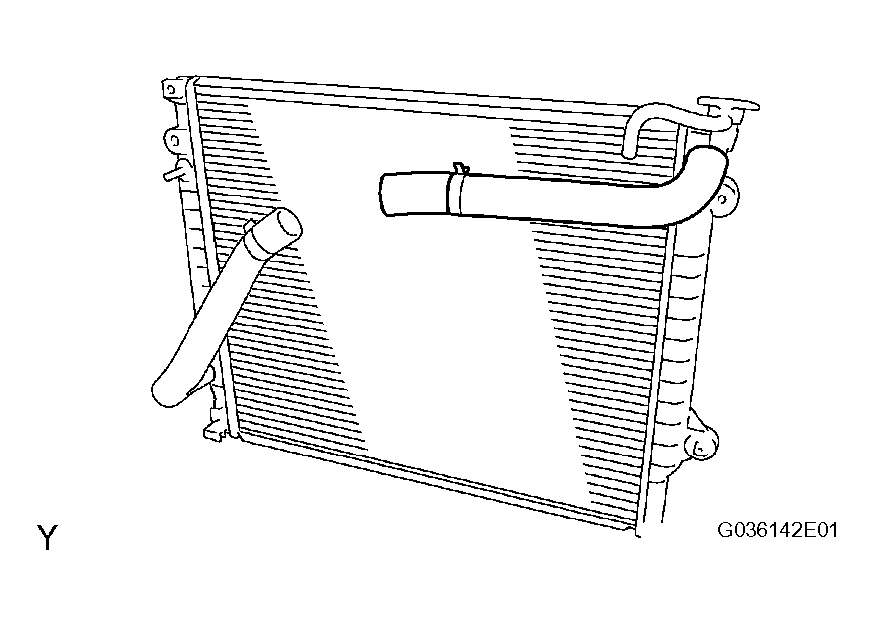

1. Disconnect the 2 radiator hoses.

  Fig 4: Disconnecting Radiator Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

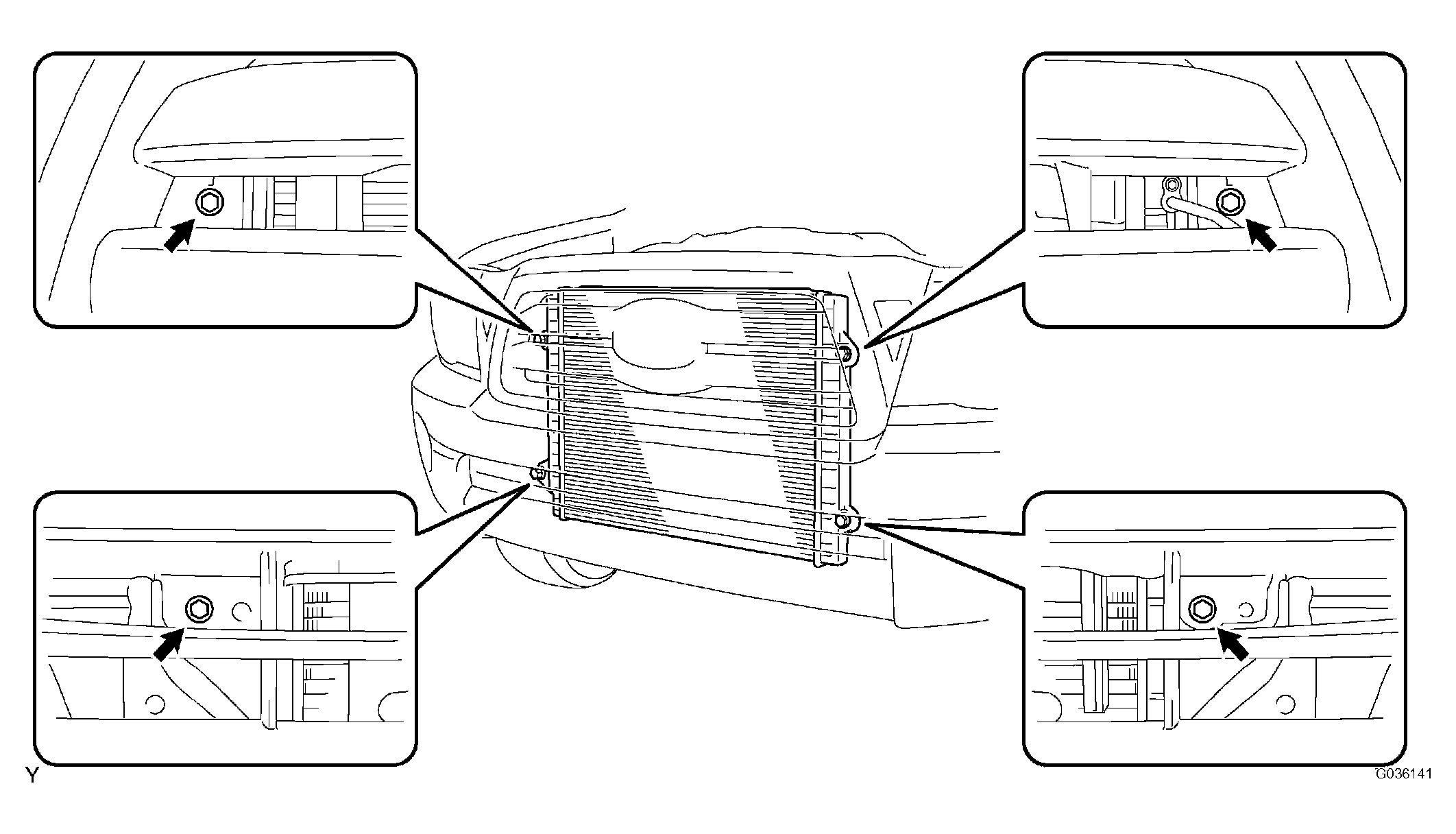

2. Remove the 4 bolts, then remove the radiator.

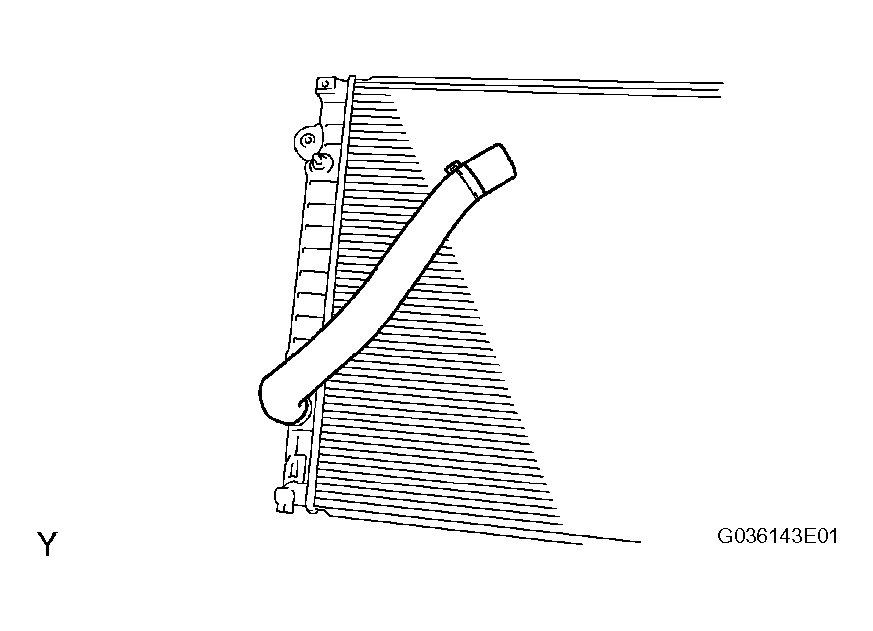

3. Disconnect the 2 oil cooler hoses (with automatic transmission).

  Fig 5: Removing Oil Cooler Hoses (With Automatic Transmission)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
