Section 10 (Engine Cooling System (2TR-FE)): Radiator: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE NO. 1 ENGINE UNDER COVER SUBASSEMBLY (for Pre Runner and 4WD Type)
1. Remove the 4 bolts, then remove the engine under cover No. 1.
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE RADIATOR SUPPORT TO FRAME SEAL LH
1. Disengage the 9 clips, then remove the radiator support to frame seal LH.

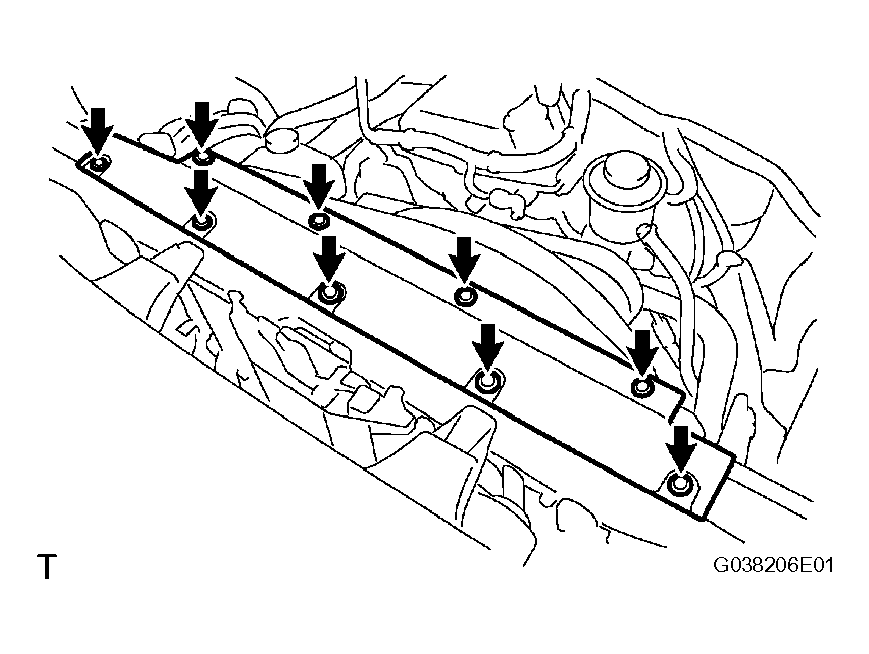

  Fig 1: Identifying Disengage Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FAN SHROUD
1. Loosen the 4 nuts shown in Fig 2.
2. Remove the fan and generator V belt.

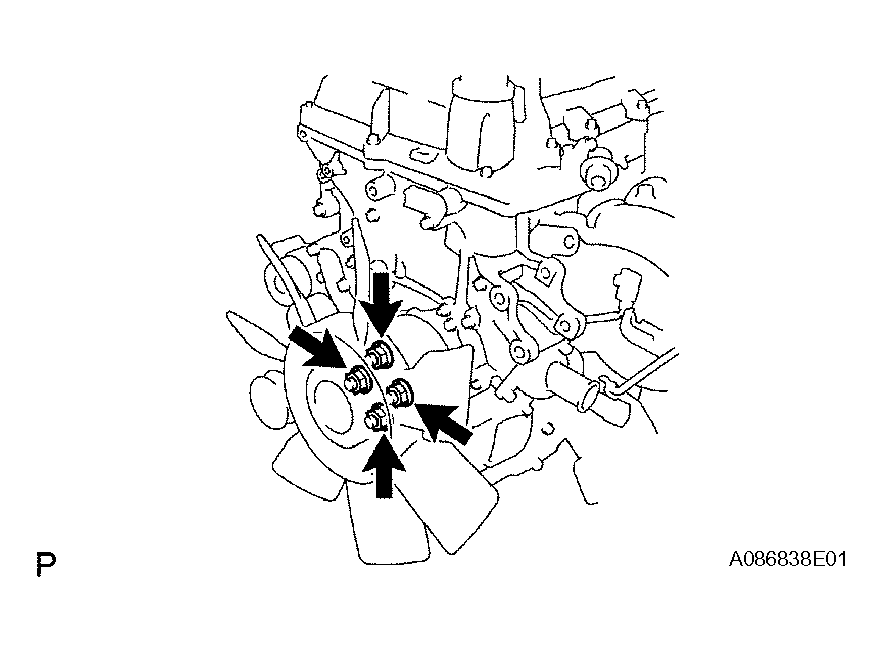

  Fig 2: Loosening Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the radiator reserve tank hose from the radiator.

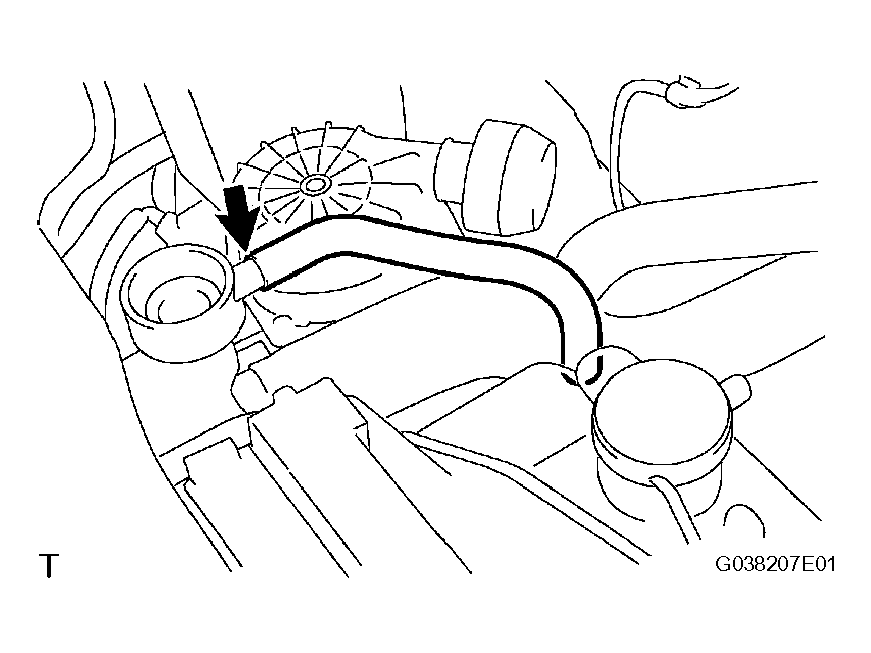

  Fig 3: Disconnecting Radiator Reserve Tank Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the oil cooler inlet and outlet hoses from the fan shroud. (for Automatic Transmission)

  Fig 4: Disconnecting Oil Cooler Inlet & Outlet Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts shown in Fig 5.

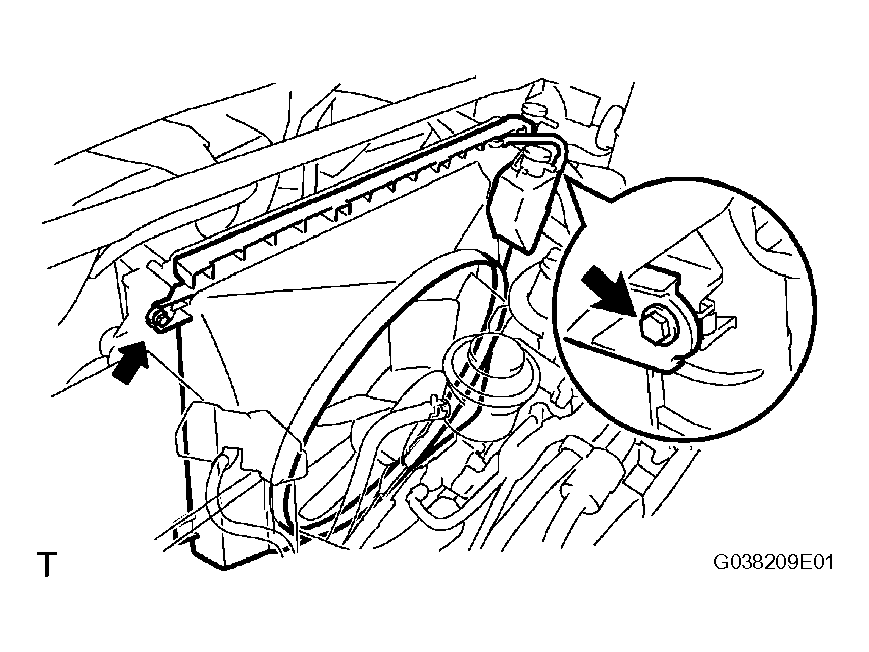

  Fig 5: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 4 nuts, then remove the fan shroud and fan with fluid coupling together.
  NOTE: Make sure that the fan shroud and fan with fluid coupling do not make any contact with the radiator when they are removed.

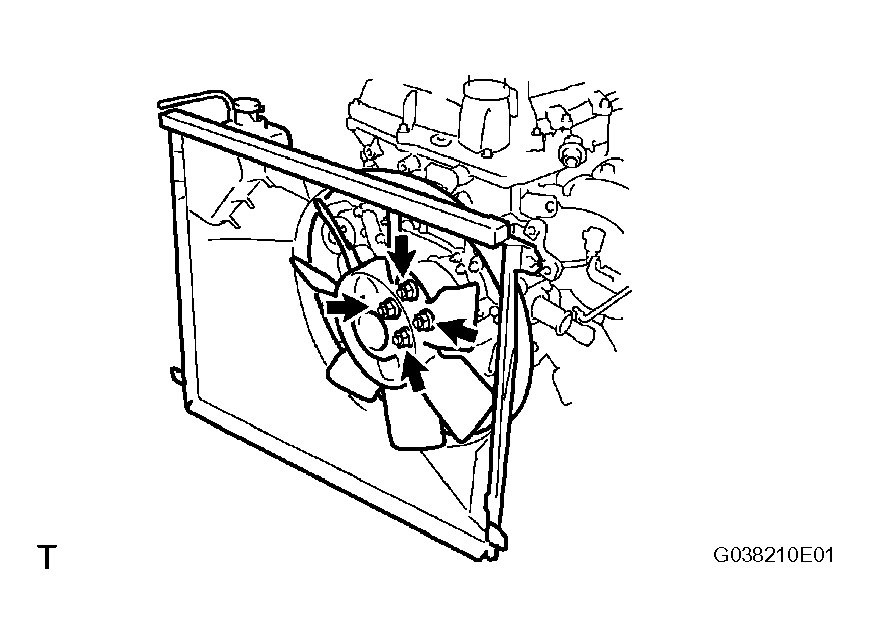

  Fig 6: Removing Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

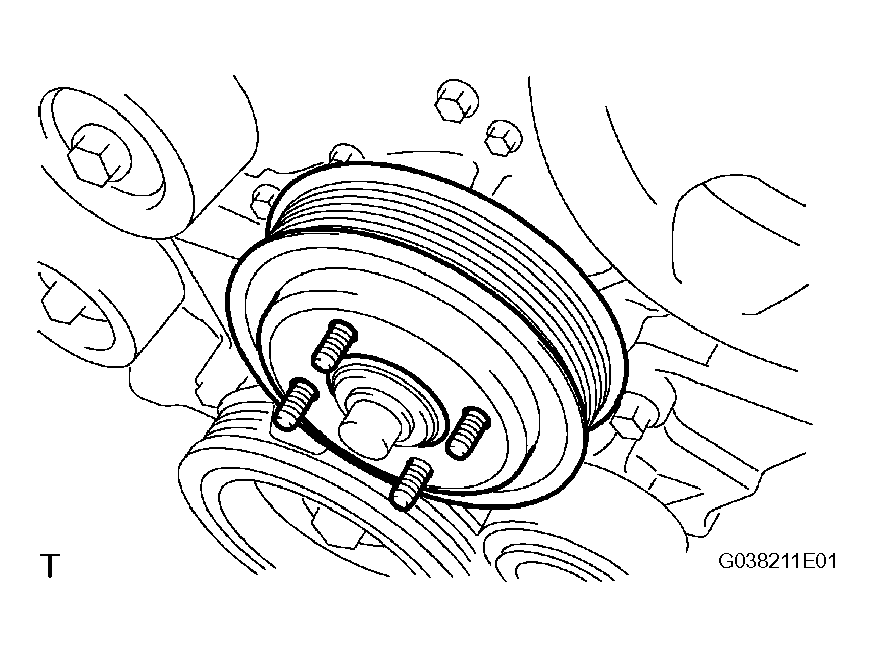

7. Remove the fan pulley.

  Fig 7: Removing Fan Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR ASSEMBLY
1. Disconnect the radiator hose inlet.

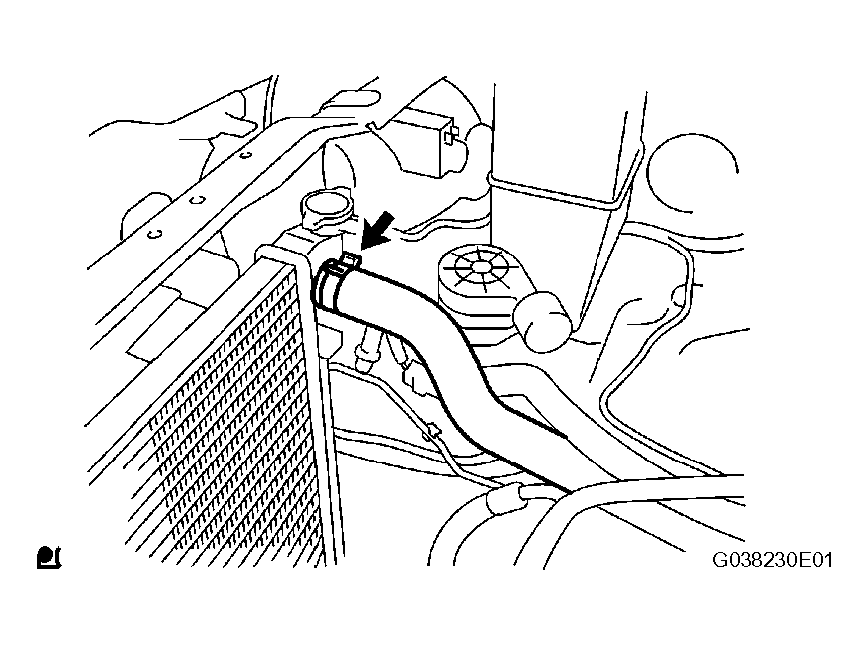

  Fig 8: Disconnecting Radiator Hose Inlet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

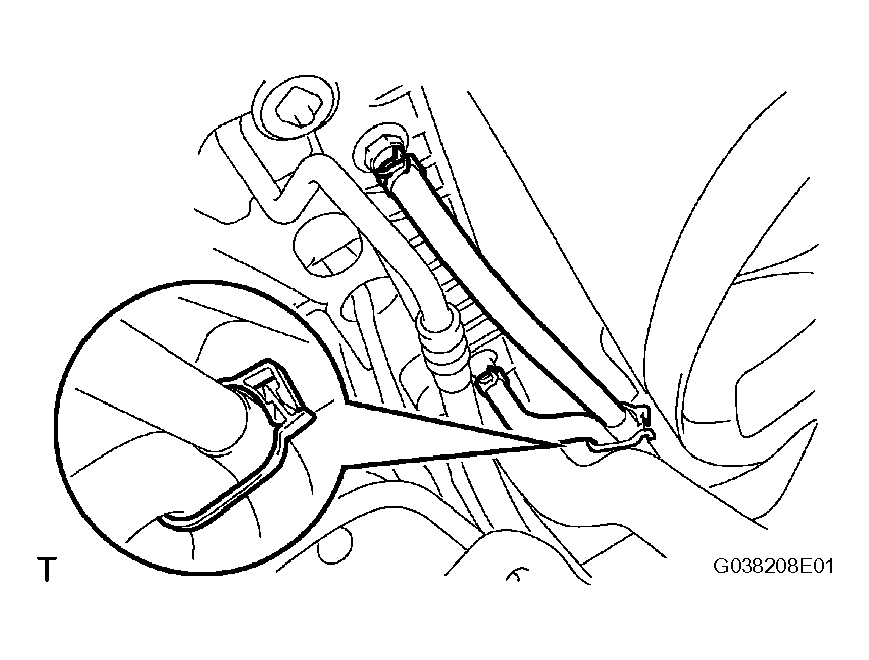

2. Disconnect the radiator hose No. 2.

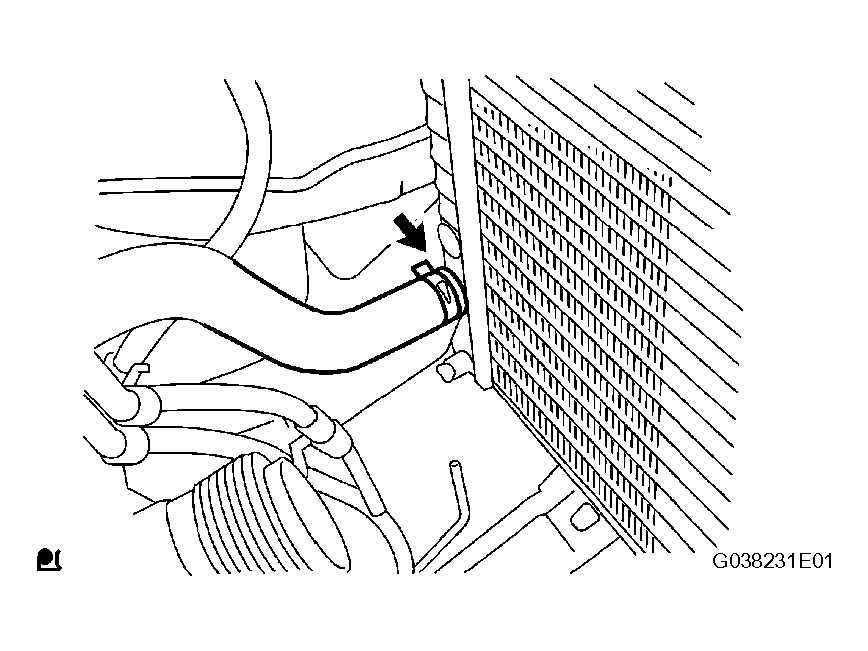

  Fig 9: Disconnecting Radiator Hose No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the oil cooler inlet and outlet hoses. (for Automatic Transmission)

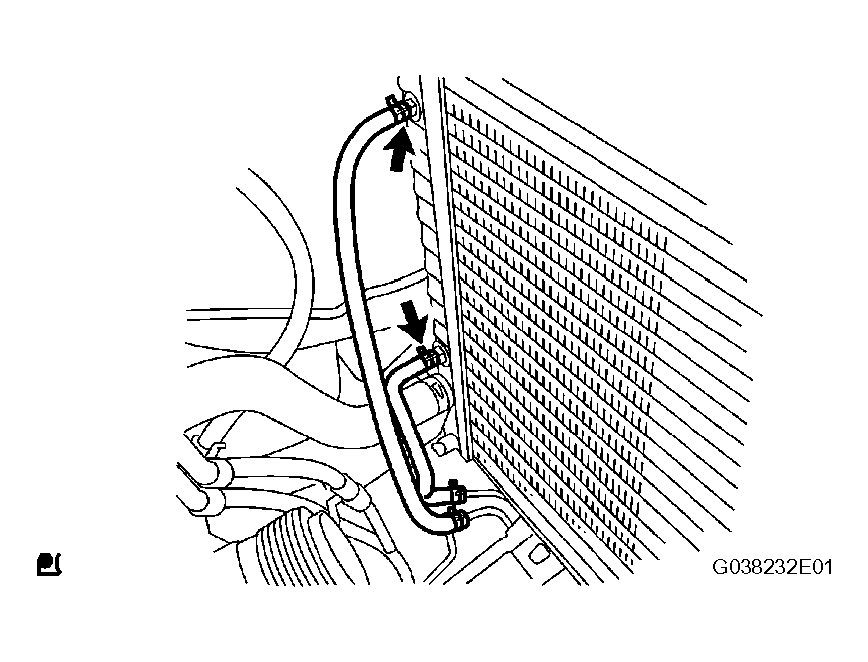

  Fig 10: Disconnecting Oil Cooler Inlet & Outlet Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

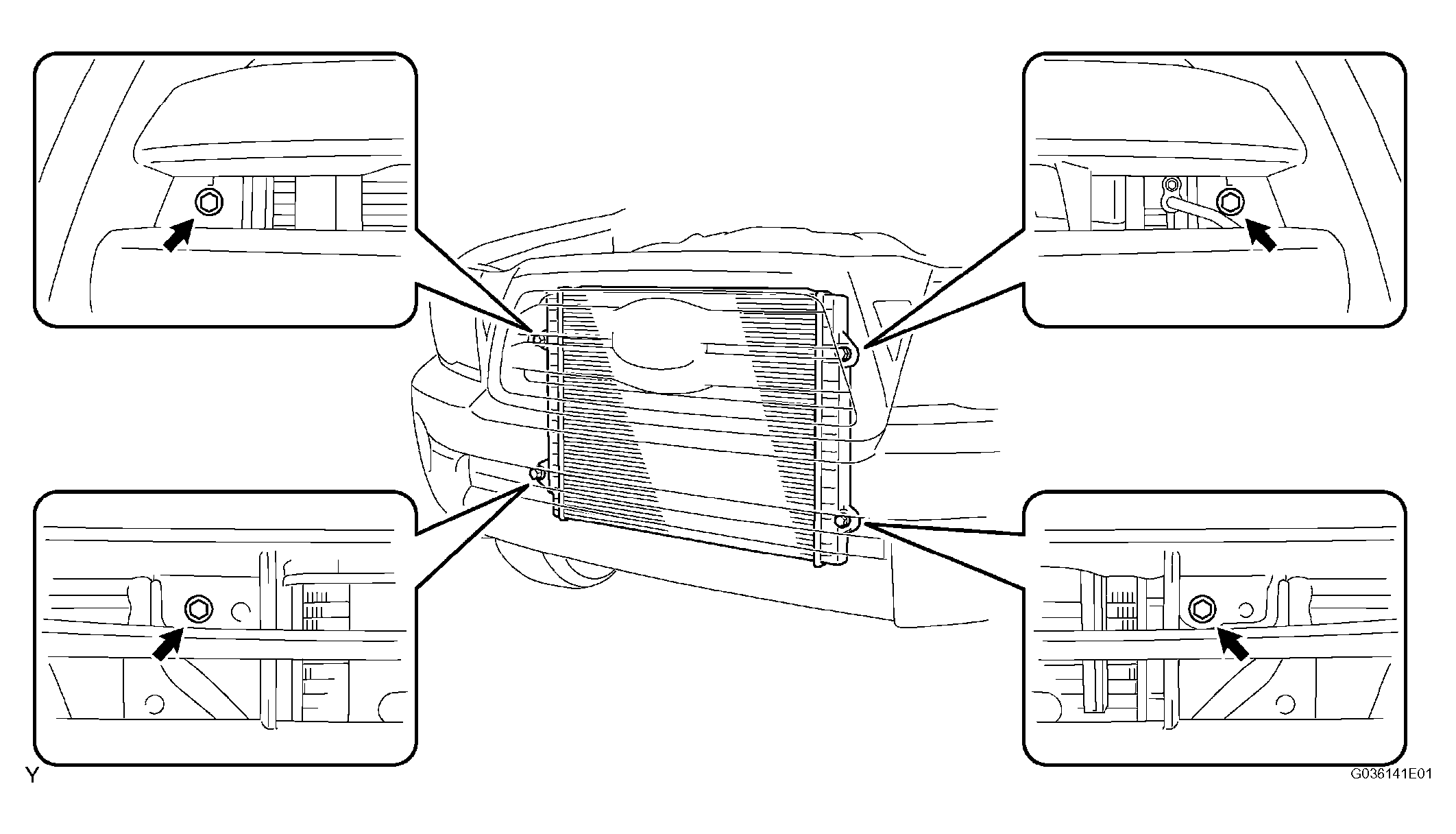

4. Remove the 4 bolts, then remove the radiator.

  Fig 11: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
