Section 10 (Engine Cooling System (2TR-FE)): Radiator: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RADIATOR CORE SUB-ASSEMBLY
Check the core plate for damage.

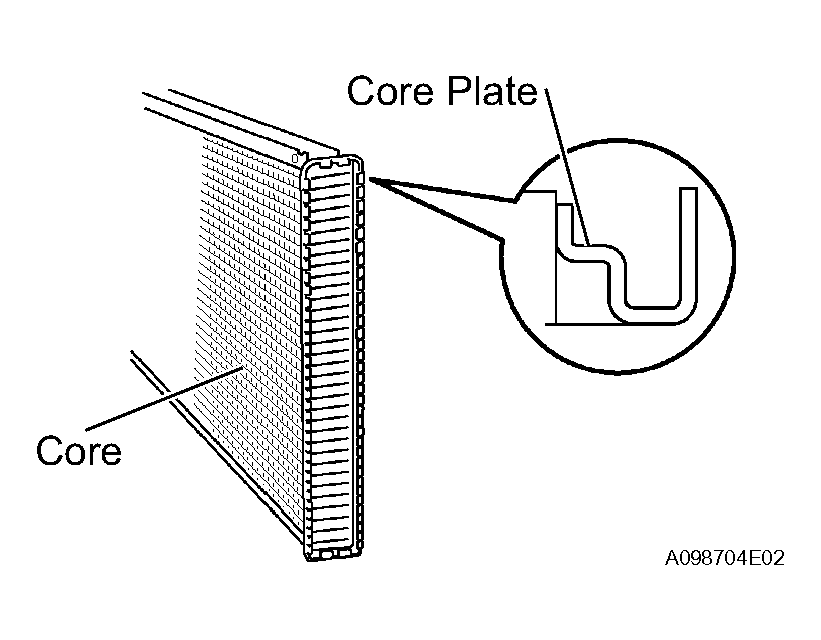

Fig 1: Checking Core Plate For Damage
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- If the sides of the core plate groove are deformed, it is impossible to reassemble the radiator tank.
  Therefore, first correct any deformation using pliers or a similar tool.
- Water leakage will occur if the bottom of the core plate groove is damaged or dented. Repair or replace the core plate if necessary.
  NOTE: The radiator can only be caulked twice. After being caulked twice, the radiator assembly must be replaced.
