Vehicle Speed Sensor (VSS) (M/T)

The VSS is driven by the differential. It generates a pulsed signal from an input of 5 volts. The number of pulses per minute increases/decreases with the speed of the vehicle.

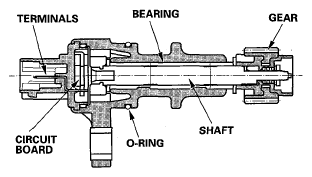

Fig 1: Sectional View Of Vehicle Speed Sensor (VSS) (M/T)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
