Oil Pump Installation

  1. Install the dowel pins (A) and new O-ring (B) on the oil pump (C), then align the inner rotor with crankshaft, and install the oil pump.

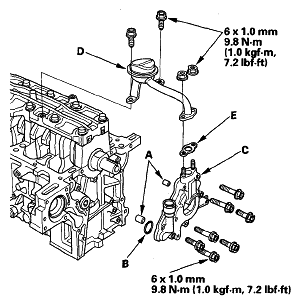

    Fig 1: Dowel Pins, New O-Ring And Oil Pump With Torque Specifications
    G05454369Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the oil screen (D) with new gasket (E).
  3. Install the cam chain (see CAM CHAIN INSTALLATION ).
