Fit Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Circuit Diagram
Circuit Diagram

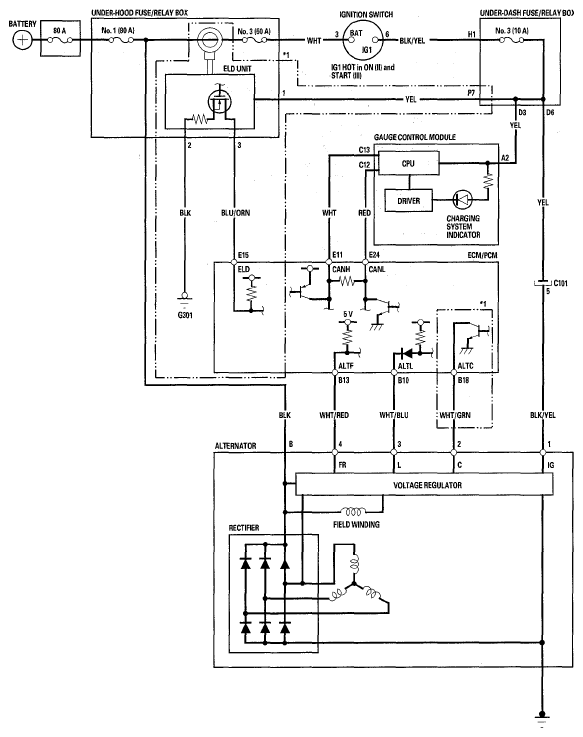

Fig 1: Charging System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
