Rear Seat Disassembly/Reassembly

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.
Take care not to tear the seams or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
The left rear seat is shown; the right rear seat is similar.

Remove the rear seat assembly (see REAR SEAT REMOVAL/INSTALLATION ).
Remove these items:
- Head restraints
- Center head restraint
Remove the screw, then remove the recline upper cover (A).

Fig 1: Identifying Recline Upper Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw (A) and release the clip (B), then remove the center cover (C).

Fig 2: Identifying Clip And Center Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

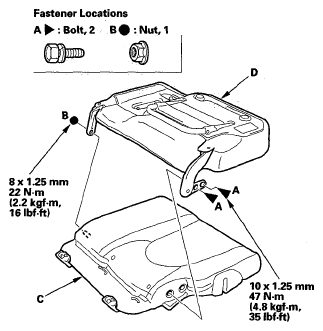

Remove the bolts (A) and nut (B), then separate the rear seat-back (C) and the rear seat cushion (D).

Fig 3: Rear Seat-Back And Rear Seat Cushion With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, remove the bushing (A) and pivot washer (B).

Fig 4: Identifying Bushing And Pivot Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reassemble the seat-back and seat cushion in the reverse order of disassembly, and note these items:
- Apply multipurpose grease to the moving portions of the recline adjusters.
- Replace any damaged or stress-whitened bushing and pivot washer with new ones.
- Make sure the bushing and pivot washer are installed correctly.
