Circuit Diagram

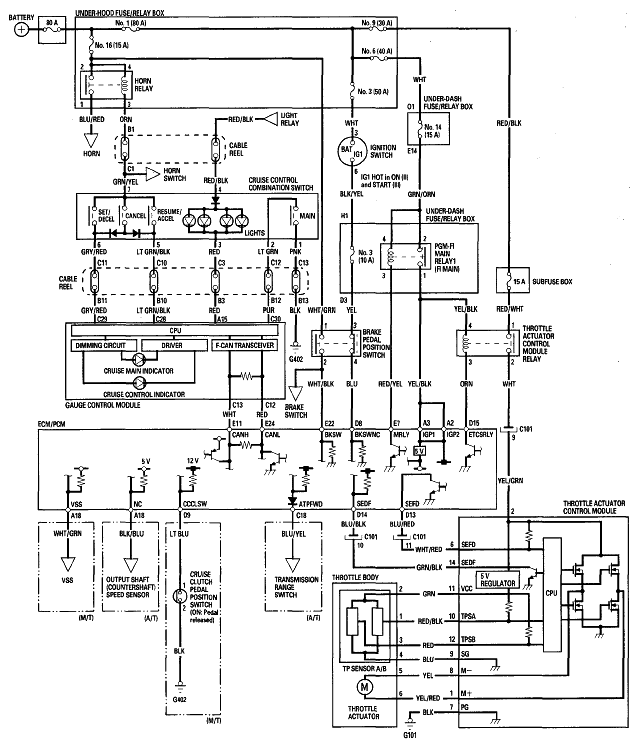

Fig 1: Cruise Control Circuit Diagram

G05454081

Courtesy of AMERICAN HONDA MOTOR CO., INC.
