Wiper/Washer Switch Connector End View

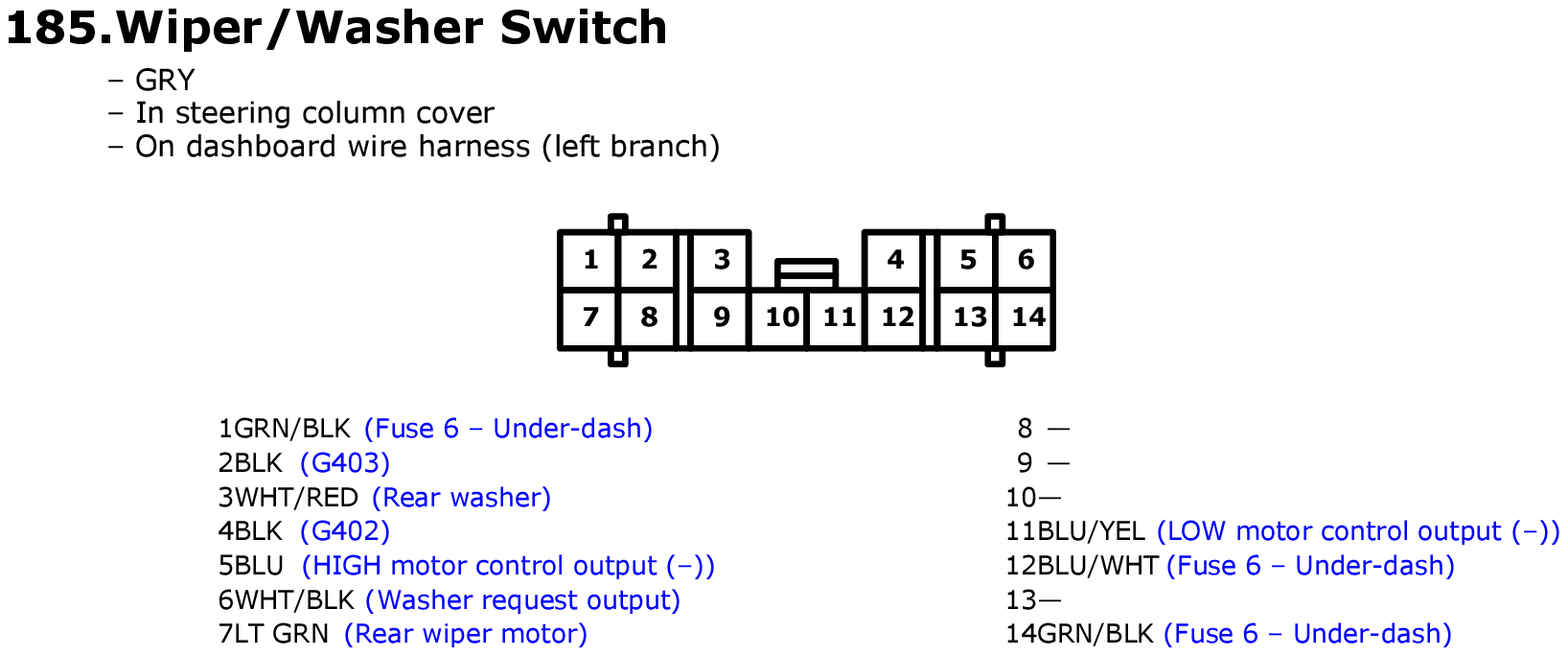

Fig 1: Wiper/Washer Switch Connector End View

GHHW4134

Courtesy of AMERICAN HONDA MOTOR CO., INC.
