Output Shaft (Countershaft) Speed Sensor (A/T) Connector End View

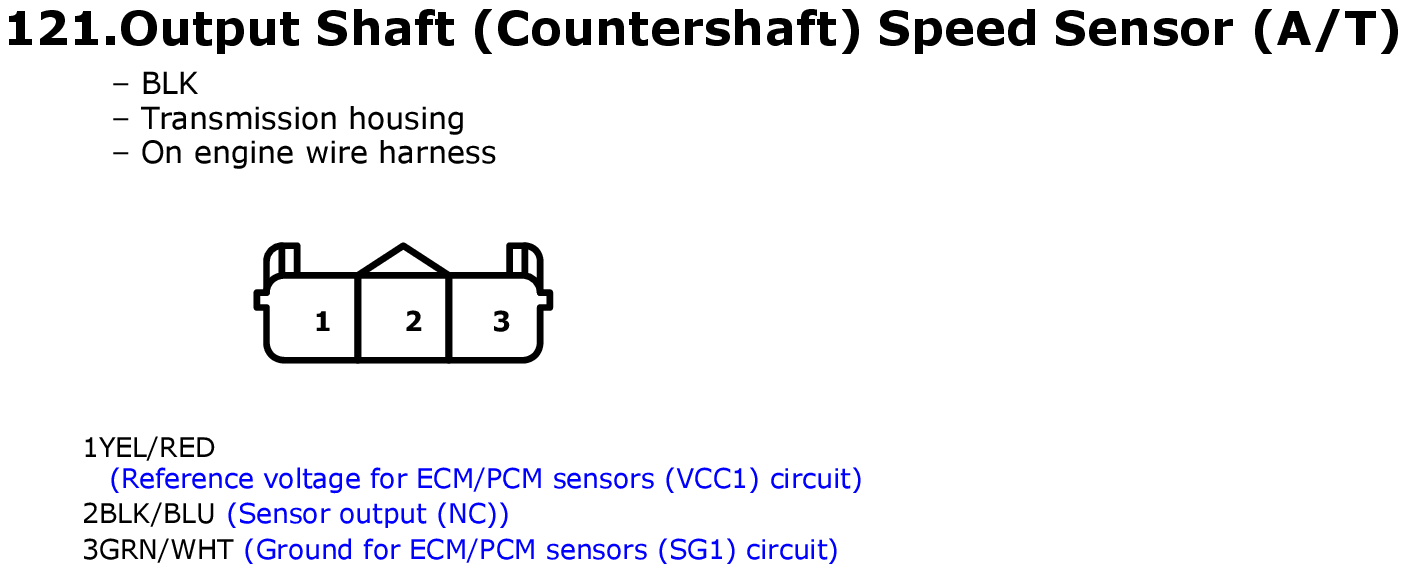

Fig 1: Output Shaft (Countershaft) Speed Sensor (A/T) Connector End View

GHHW4070

Courtesy of AMERICAN HONDA MOTOR CO., INC.
