Front Passenger's Power Window Switch Connector End View

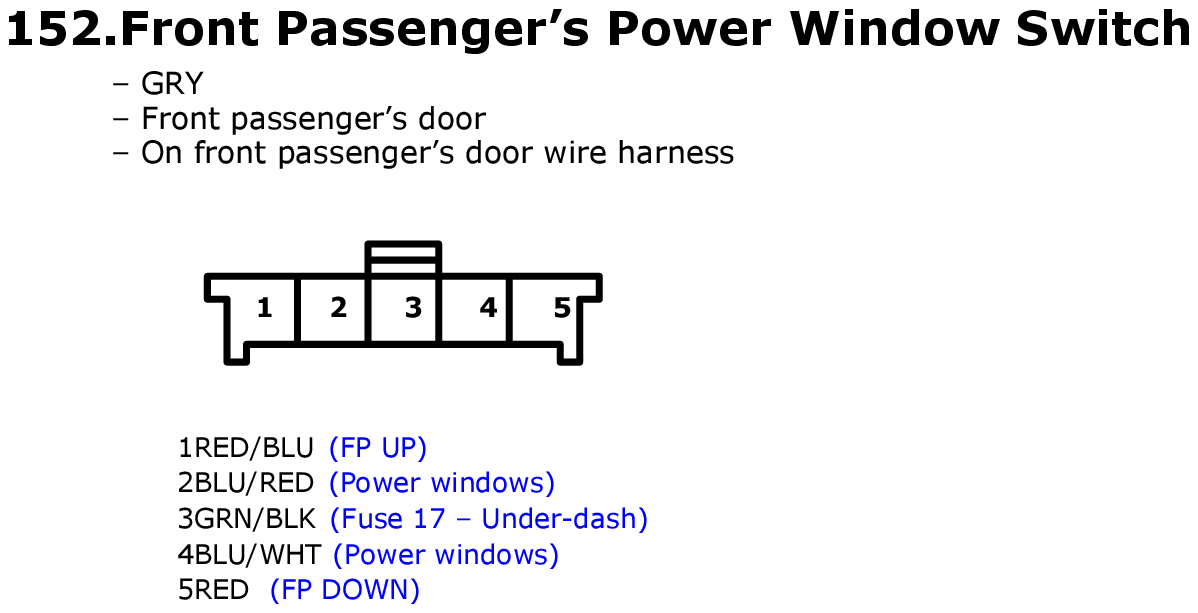

Fig 1: Front Passenger's Power Window Switch Connector End View

GHHW4101

Courtesy of AMERICAN HONDA MOTOR CO., INC.
