EPS Torque Sensor Connector End View

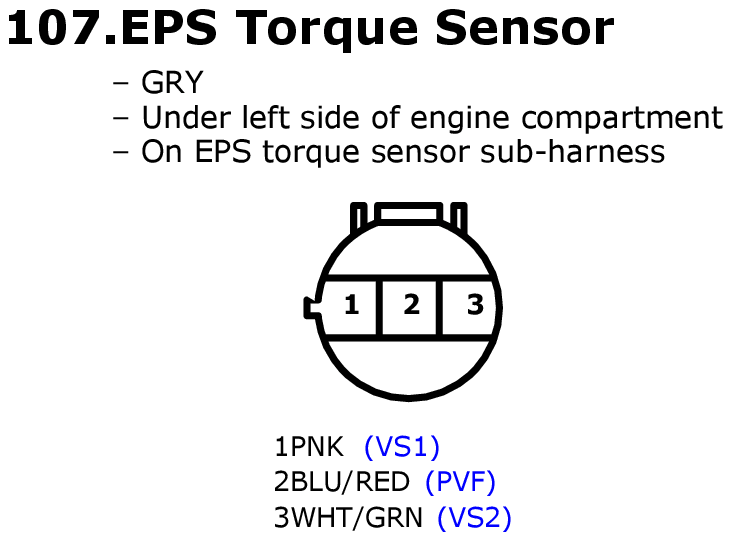

Fig 1: EPS Torque Sensor Connector End View

GHHW4056

Courtesy of AMERICAN HONDA MOTOR CO., INC.
