EPS Motor Angle Sensor Connector End View

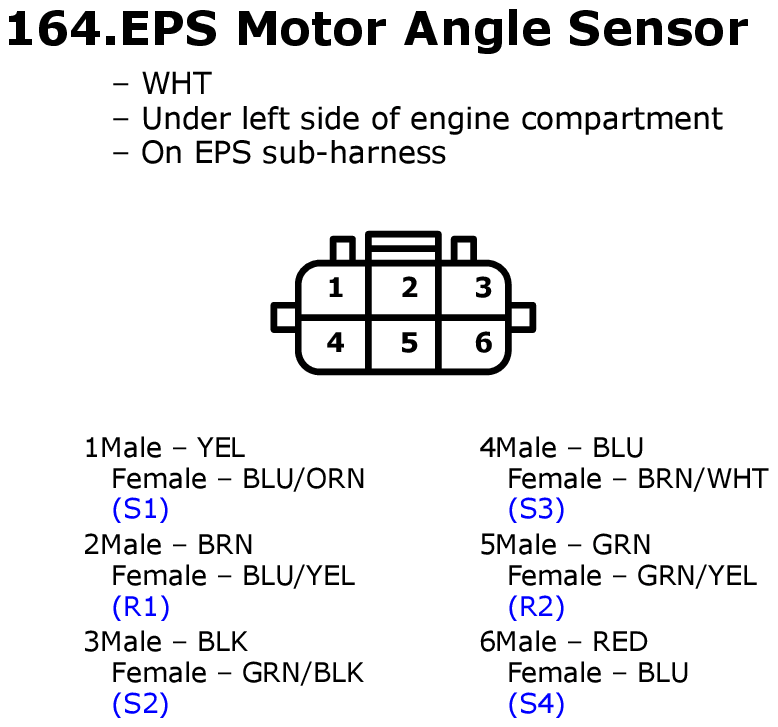

Fig 1: EPS Motor Angle Sensor Connector End View

GHHW4113

Courtesy of AMERICAN HONDA MOTOR CO., INC.
