Combination Light Switch Connector End View

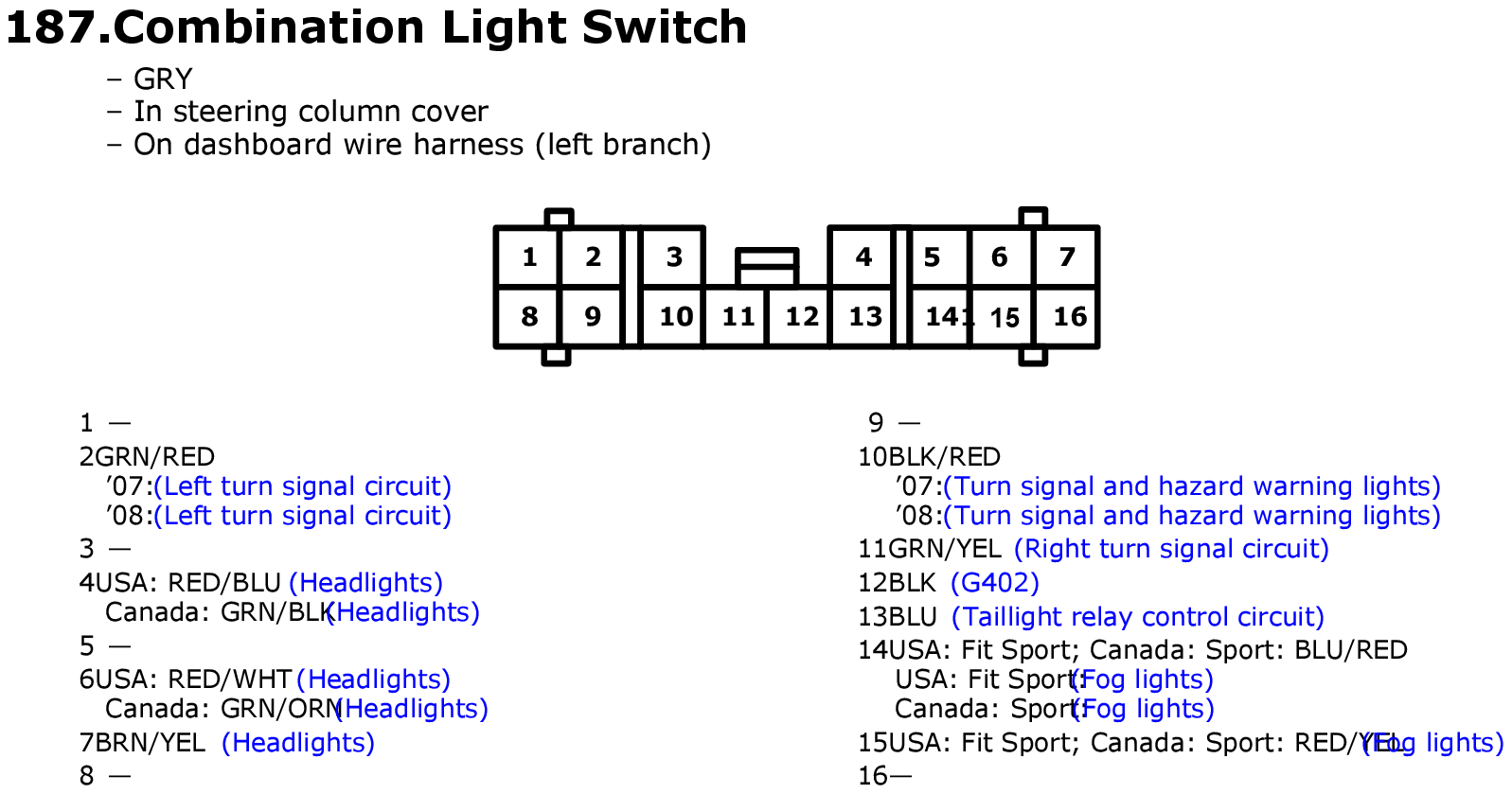

Fig 1: Combination Light Switch Connector End View

GHHW4136

Courtesy of AMERICAN HONDA MOTOR CO., INC.
