Back-Up Light Switch (M/T) Connector End View

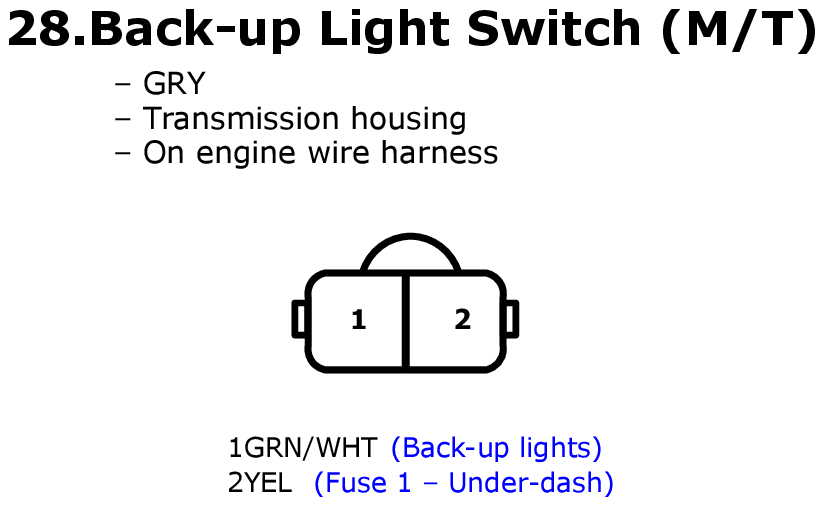

Fig 1: Back-Up Light Switch (M/T) Connector End View

GHHW3977

Courtesy of AMERICAN HONDA MOTOR CO., INC.
