Auxiliary Under-Dash Fuse/Relay Box Connector End View

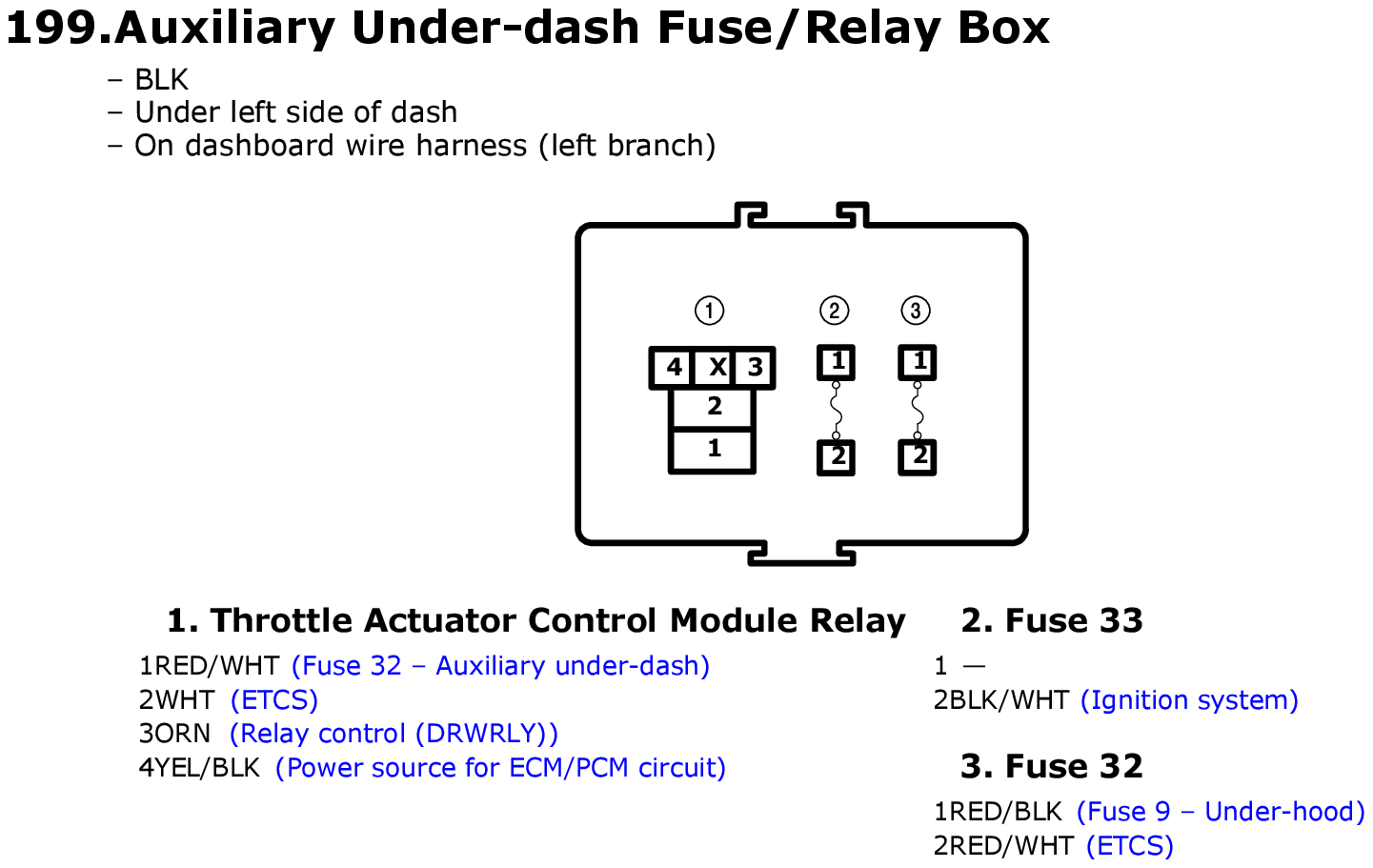

Fig 1: Auxiliary Under-Dash Fuse/Relay Box Connector End View

GHHW4148

Courtesy of AMERICAN HONDA MOTOR CO., INC.
