Frame Repair Chart
>>
Side View
Side View

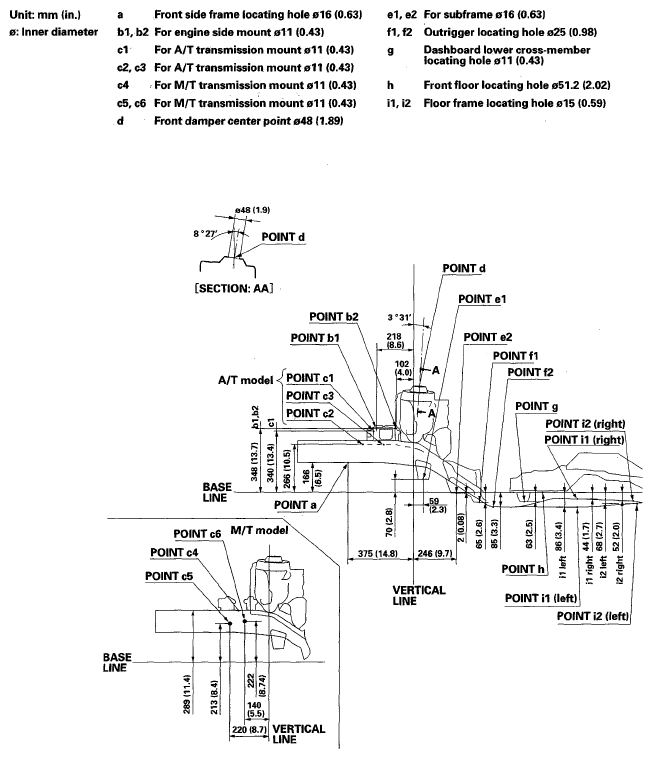

Fig 1: Frame Repair Chart - Side View (1 Of 2)

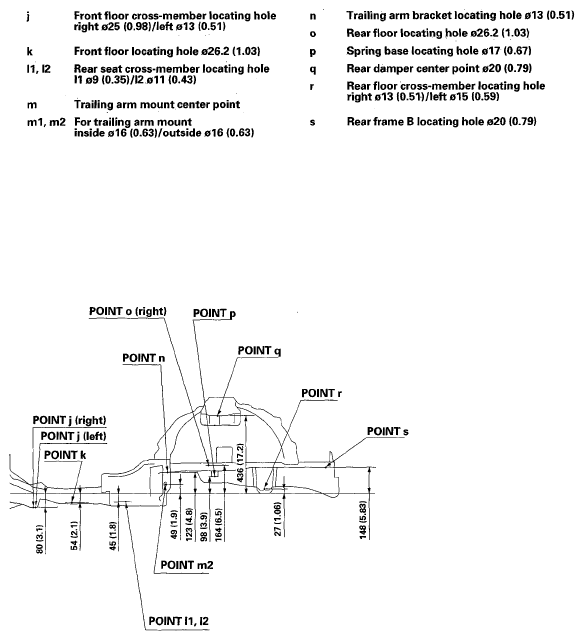

Fig 2: Frame Repair Chart - Side View (2 Of 2)
