Circuit Diagram

Seven-position Transmission

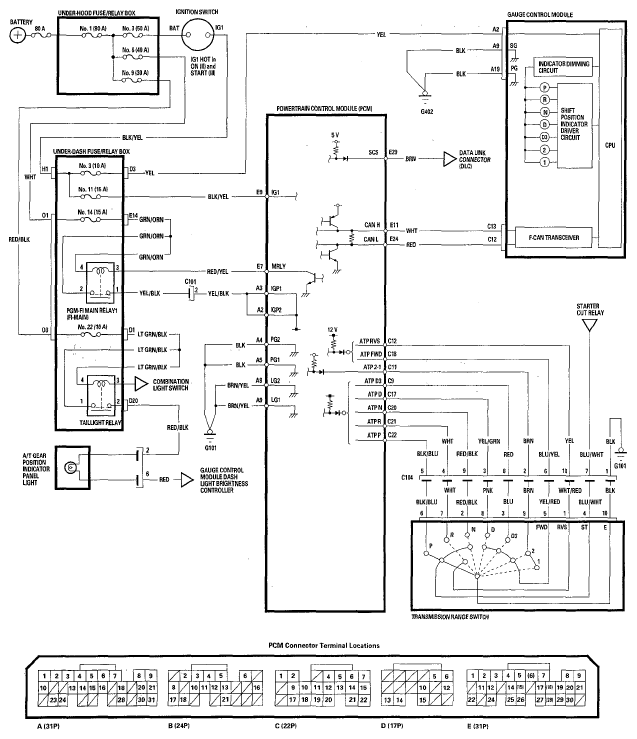

Fig 1: A/T Gear Position Indicator Circuit Diagram - Seven-Position Transmission
G05455405

Five-position Transmission

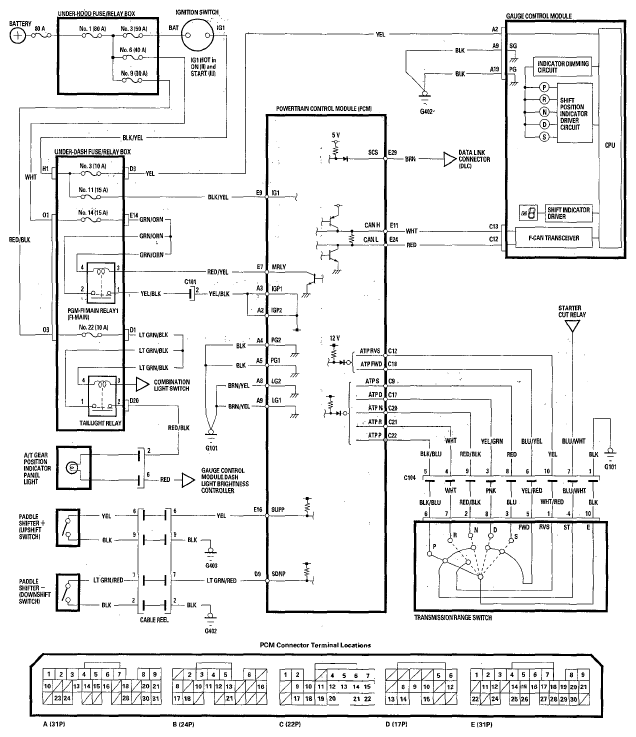

Fig 2: A/T Gear Position Indicator Circuit Diagram - Five-Position Transmission
G05455406
