Driver's Airbag First And Second Inflators Connector End View

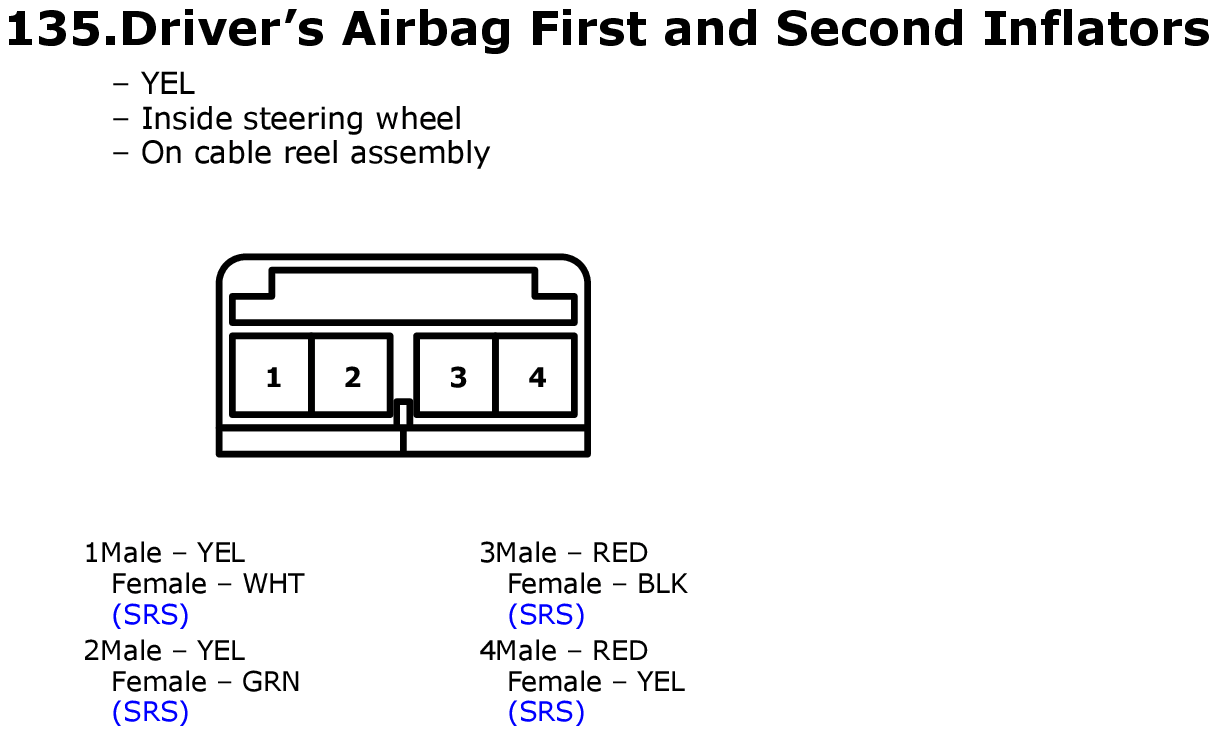

Fig 1: Driver's Airbag First And Second Inflators Connector End View

GHHW4084

Courtesy of AMERICAN HONDA MOTOR CO., INC.
