System Diagram

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Vehicle Stability Control - System Diagram (1 Of 2)
G05199161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

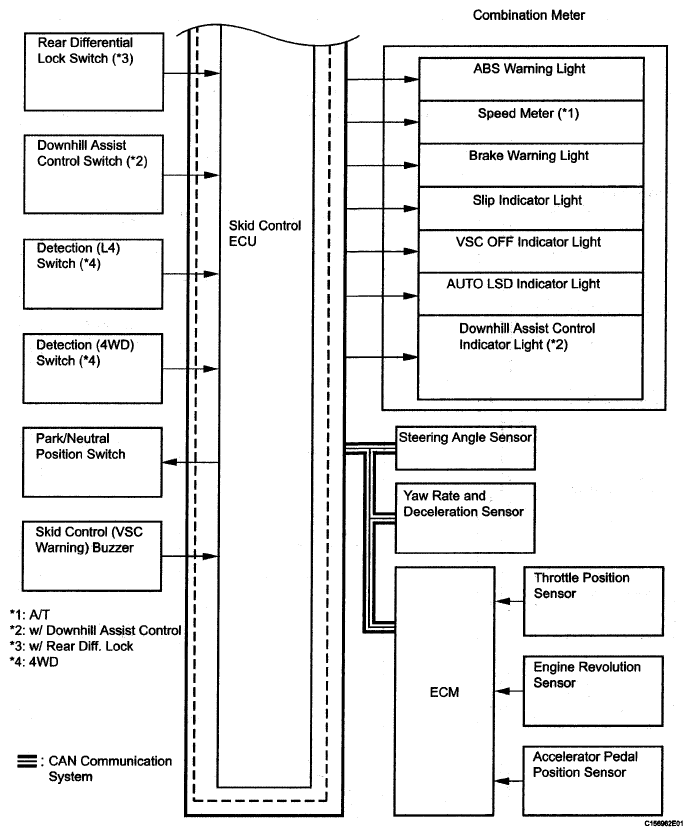

Fig 2: Vehicle Stability Control - System Diagram (2 Of 2)
G05199162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU SIGNALS REFERENCE CHART

Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
Skid control ECM ECU Throttle position signal CAN communication system
Skid control ECM ECU Engine revolution signal CAN communication system
Skid control ECM ECU Accelerator pedal position signal CAN communication system
ECM Skid control ECU Intake temperature signal CAN communication system
Skid control ECU ECM Yaw rate and deceleration signal CAN communication system
Skid control ECU ECM Steering angle signal CAN communication system
Skid control ECU ECM Throttle opening angle request signal CAN communication system
