Vehicle Stability Control System: Calibration

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DESCRIPTION
    1. After replacing the VSC relevant components or performing "Front wheel alignment adjustment", clearing and reading the sensor calibration data are necessary.
      Fig 1: Jiggling Connector Or Wire Harness Between ECU And Sensors
      G04832151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Follow the chart to perform calibration.
      CALIBRATION CHART

      Replacing Parts Necessary Operations
      Skid Control ECU Yaw rate sensor and deceleration sensor zero point calibration.
      Yaw Rate Sensor
      1. Clearing zero point calibration data.
      2. Yaw rate sensor and deceleration sensor zero point calibration.
      Front Wheel Alignment
      1. Clearing zero point calibration data.
      2. Yaw rate sensor and deceleration sensor zero point calibration.
  2. CLEAR ZERO POINT CALIBRATION (for Using a Intelligent Tester)

    HINT:

    After replacing the yaw rate and deceleration sensor, be sure to clear the zero point calibration data in the skid control ECU and perform zero point calibration.

    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch to the ON position.
    3. Operate the intelligent tester to erase the DTCs.
      Fig 2: Connecting Intelligent Tester To DLC3
      G05199083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

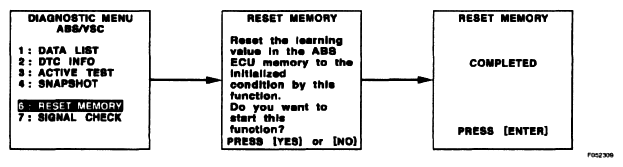

      Fig 3: Intelligent Tester Display - Reset Memory
      G04965381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Perform zero point calibration of the yaw rate and deceleration sensor using the intelligent tester.
  3. PERFORM ZERO POINT CALIBRATION OF YAW RATE SENSOR AND DECELERATION SENSOR (for Using a Intelligent Tester)

    HINT:

    After replacing the yaw rate and deceleration sensor, be sure to clear the zero point calibration data in the skid control ECU and perform zero point calibration.

    NOTE:
    • While obtaining the zero point, do not vibrate the vehicle by tilting, moving or shaking it and keep it stationary. (Do not start the engine.)
    • Be sure to do this on a level surface (with an inclination of less than 1 degree).
    1. Procedures for test mode.
      1. Turn the ignition switch to OFF.
      2. Check that the steering wheel is in the straight-ahead position.
      3. A/T: Check that the shift lever is in the P position and apply the parking brake.

        M/T: Check that the shift lever is in neutral and apply the parking brake.

        NOTE: DTC C1210/36 and C1336/39 will be recorded if the shift lever is not in the P position.
      4. Connect the intelligent tester to the DLC3.
      5. Turn the ignition switch to the ON position.
      6. Switch the ECU to test mode using the intelligent tester. Select the following menu items: DIAGNOSTIC / OBD/MOBD / select vehicle / ABS / VSC/TEST MODE.
        Fig 4: Connecting Intelligent Tester To DLC3
        G05199083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 5: Intelligent Tester Display - Main Menu
        G05199178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Keep the vehicle stationary on a level surface for 2 seconds or more.
      8. Check that the VSC OFF indicator light blinks as shown in the illustration.
        NOTE: The VSC OFF indicator light (4WD, with rear differential lock) stay ON when obtaining the zero point.

        HINT:

        • If the VSC OFF indicator light does not blink, perform the zero point calibration again.
        • The zero point calibration is performed only once after the system enters test mode.
          Fig 6: Blinking Pattern Of ABS Warning Light
          G05199179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • Calibration cannot be performed again until the stored data is cleared once.
      9. Turn the ignition switch to OFF.
  4. CLEAR ZERO POINT CALIBRATION (for Using a Intelligent Tester)

    HINT:

    After replacing the yaw rate and deceleration sensor, be sure to clear the zero point calibration data in the skid control ECU and perform zero point calibration.

    1. Turn the ignition switch to the ON position.
    2. Using SST, connect and disconnect terminals TS and CG of the DLC3 4 times or more within 8 seconds.

      SST 09843-18040

      Fig 7: Identifying DLC3 Connector Terminals
      G04832156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that the VSC OFF indicator light blinks in a normal system indication pattern.
      4. Fig 8: Identifying VSC OFF Indicator Light Blinking Pattern
      G05199093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the SST from the terminals of the DLC3.
    5. Perform zero point calibration of the yaw rate and deceleration sensor using a check wire.
  5. PERFORM ZERO POINT CALIBRATION OF YAW RATE SENSOR AND DECELERATION SENSOR (for Using a SST Check Wire)

    HINT:

    After replacing the skid control ECU and/or yaw rate and deceleration sensor, be sure to perform yaw rate sensor and deceleration sensor zero point calibration.

    NOTE:
    • While obtaining the zero point, do not vibrate the vehicle by tilting, moving or shaking it and keep it stationary. (Do not start the engine.)
    • Be sure to do this on a level surface (with an inclination less than 1 degree).
    1. Procedures for test mode:
      1. Turn the ignition switch to OFF.
      2. Check that the steering wheel is in the straight-ahead position.
      3. A/T: Check that the shift lever is in the P position and apply the parking brake. M/T: Check that the shift lever is in neutral and apply the parking brake.
        NOTE: DTC C1210/36 and C1336/39 will be recorded if the shift lever is not in the P position.
      4. Using SST, connect terminals TS and CG of the DLC3.

        SST 09843-18040

      5. Turn the ignition switch to the ON position.
      6. Keep the vehicle stationary on a level surface for 2 seconds or more.
        Fig 9: Identifying DLC3 Connector Terminals
        G04832156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Check that the VSC OFF indicator light blinks as shown in the illustration.
        NOTE: The VSC OFF indicator light (4WD, with rear differential lock) stay ON when obtaining the zero point.

        HINT:

        • If the VSC OFF indicator light does not blink, perform the zero point calibration again.
        • The zero point calibration is performed only once after the system enters test mode.
        • Calibration cannot be performed again until the stored data is cleared once.
          Fig 10: Identifying VSC OFF Indicator Light Blinking Pattern
          G05199179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
