Tail Gate Protector: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TAIL GATE PROTECTOR
    1. Using "Torx" socket wrench T30, remove the 7 screws.
      Fig 1: Removing Screws Using Socket Wrench T30
      G04413713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply protective tape to the outer circumference of the tail gate protector.
    3. Using a molding remover, disengage the 10 claws and remove the tail gate protector.

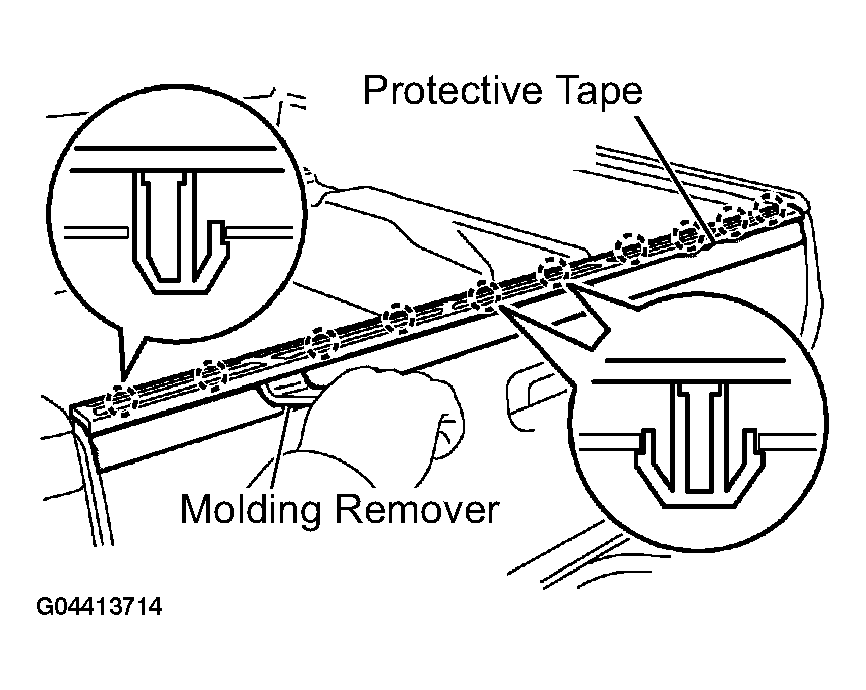

      Fig 2: Applying Protective Tape To Outer Circumference Of Tail Gate Protector
      G04413714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
