Rocker Panel Molding: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BACK DOOR OUTSIDE MOLDING SUBASSEMBLY
1. Install new No. 3 body outside molding pad in the position shown in Fig 1.

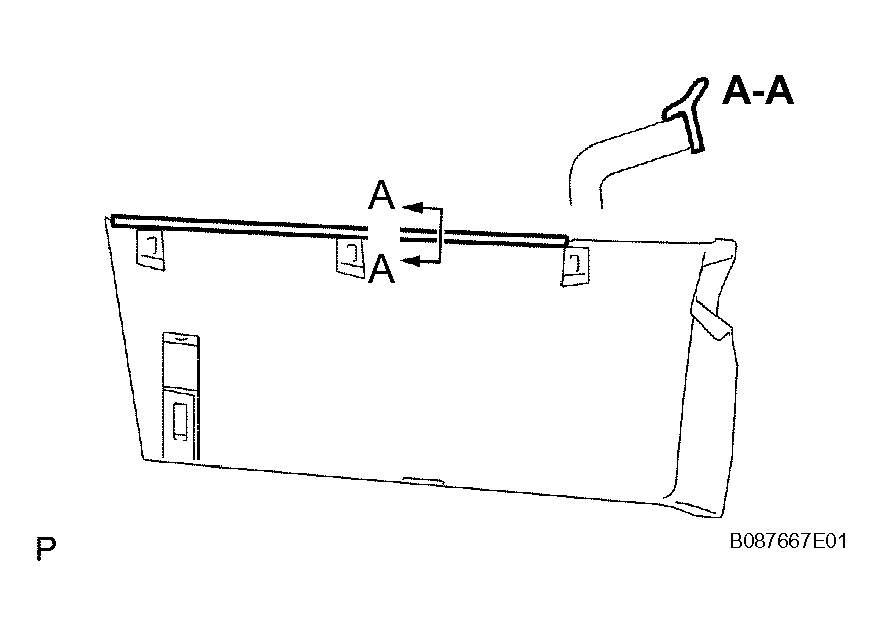

  Fig 1: Installing New No. 3 Body Outside Molding Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install each clip in the position shown in Fig 2.
  NOTE: If you install the clips wrongly, the installation of the back door outside molding would be improper.

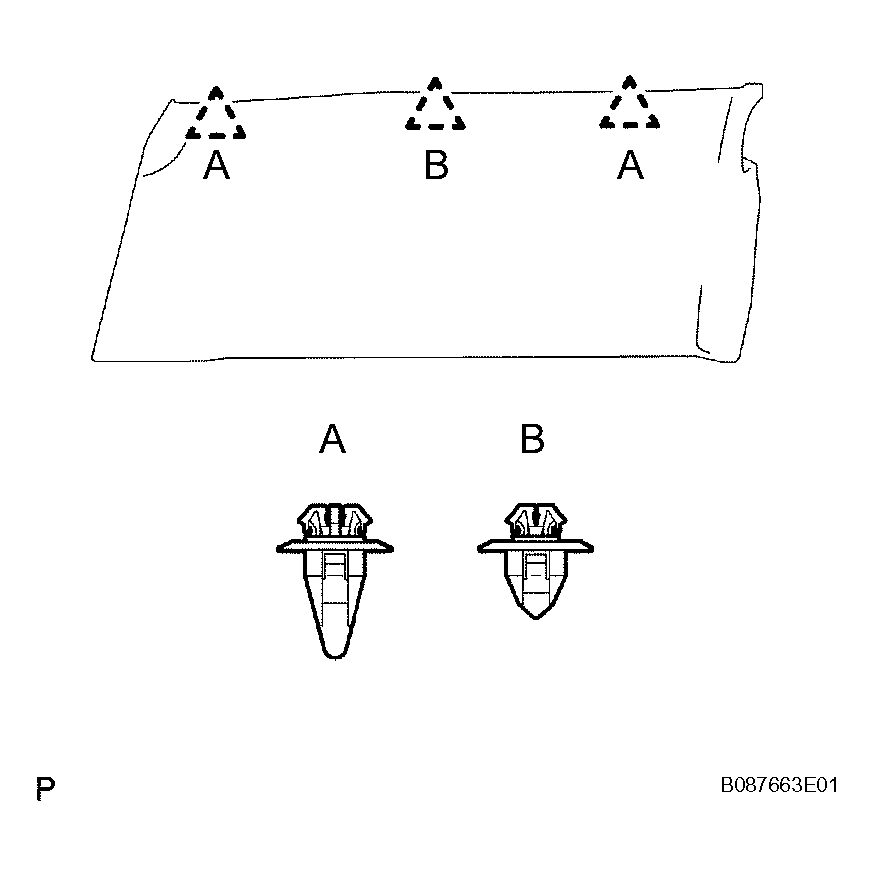

  Fig 2: Installing Each Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 3 clips and install the back door outside molding.

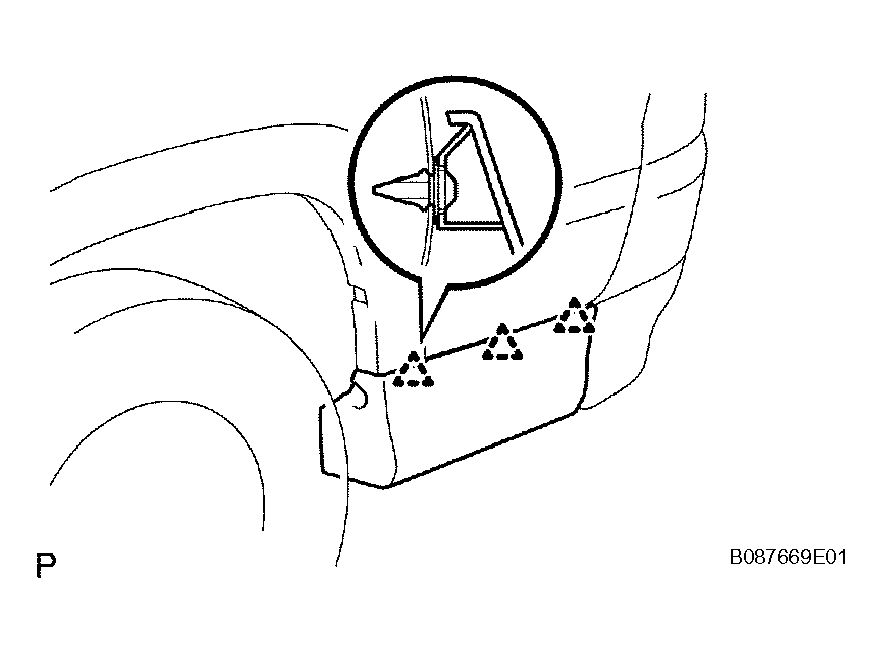

  Fig 3: Installing Back Door Outside Molding & Engaging Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Tighten the 3 screws.

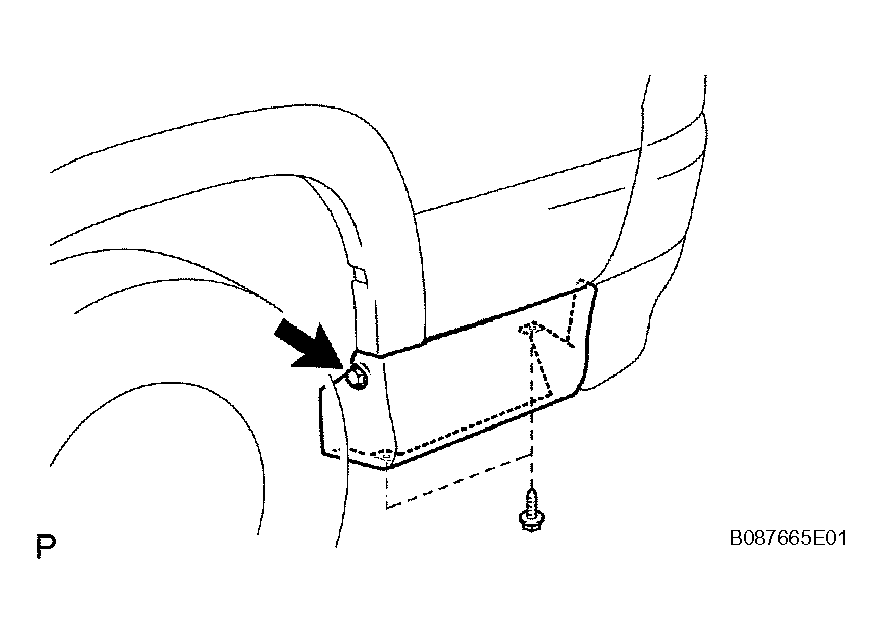

  Fig 4: Tightening Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BODY ROCKER PANEL MOLDING ASSEMBLY
1. Install new No. 2 body outside molding pad in the position shown in Fig 5.

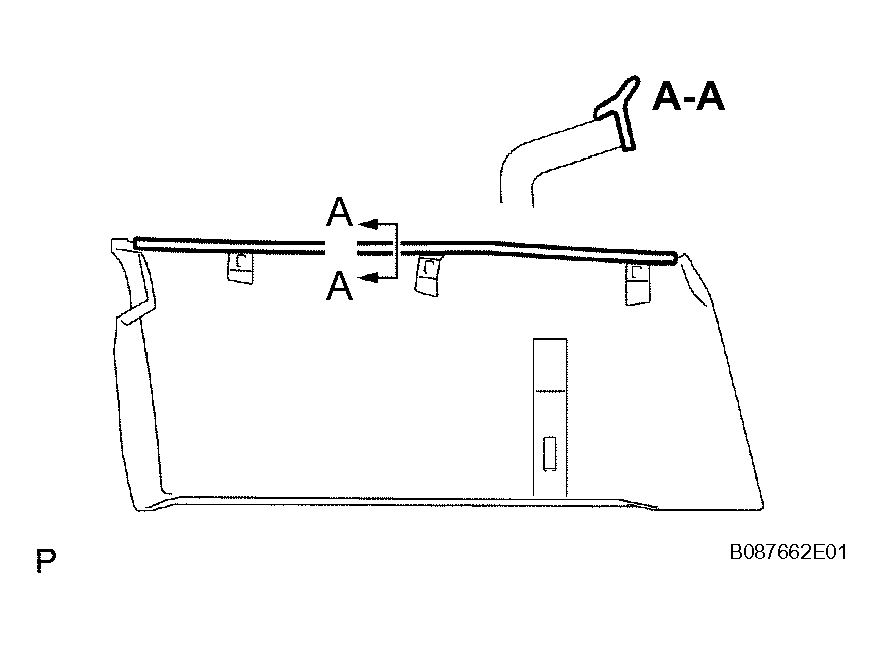

  Fig 5: Installing New No. 2 Body Outside Molding Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install each clip in the position shown in Fig 6.
  NOTE: If you install the clips wrongly, the installation of the body rocker panel molding would be improper.

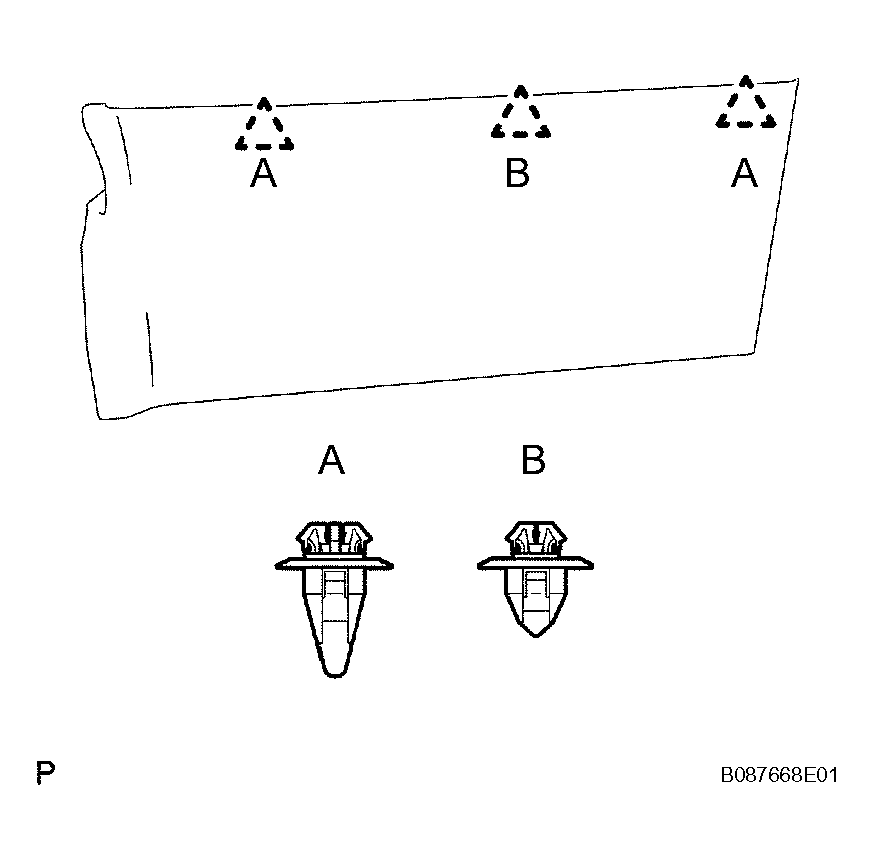

  Fig 6: Installing Each Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 3 claws and install the body rocker panel molding.

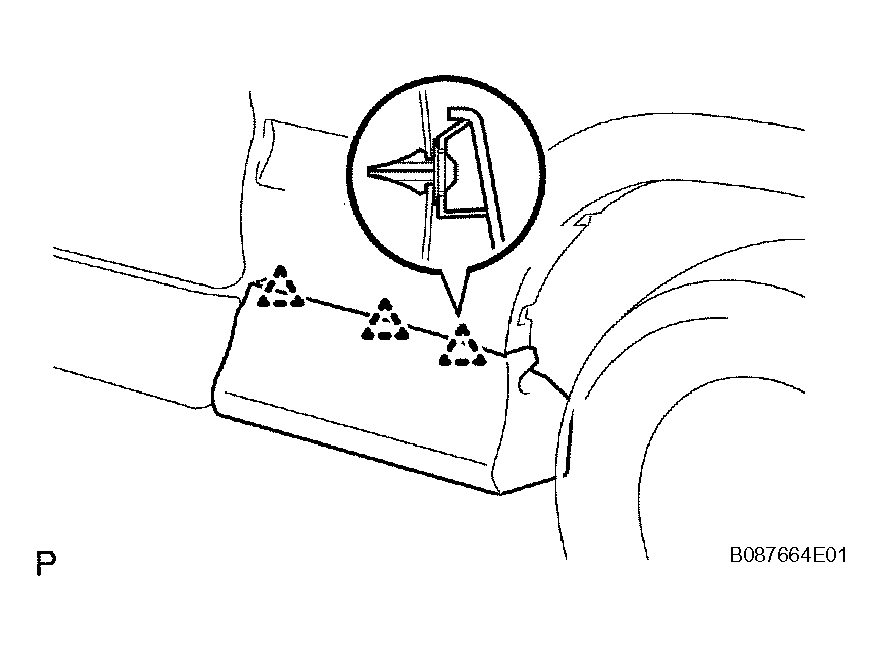

  Fig 7: Installing Body Rocker Panel Molding & Engaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Tighten the 3 screws.

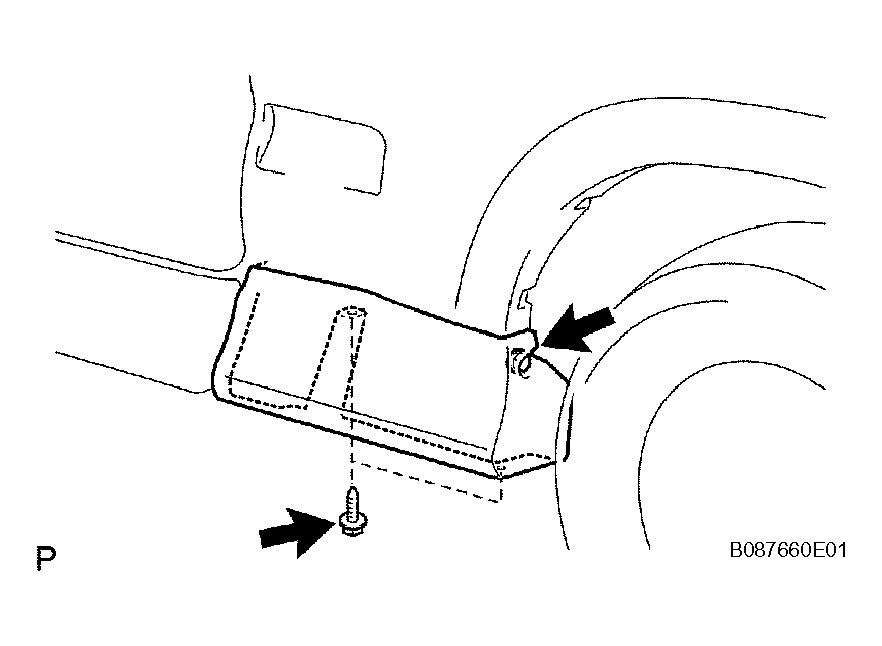

  Fig 8: Tightening Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROCKER PANEL MOLDING
1. Install new No. 1 body outside molding pad in the position shown in Fig 9.

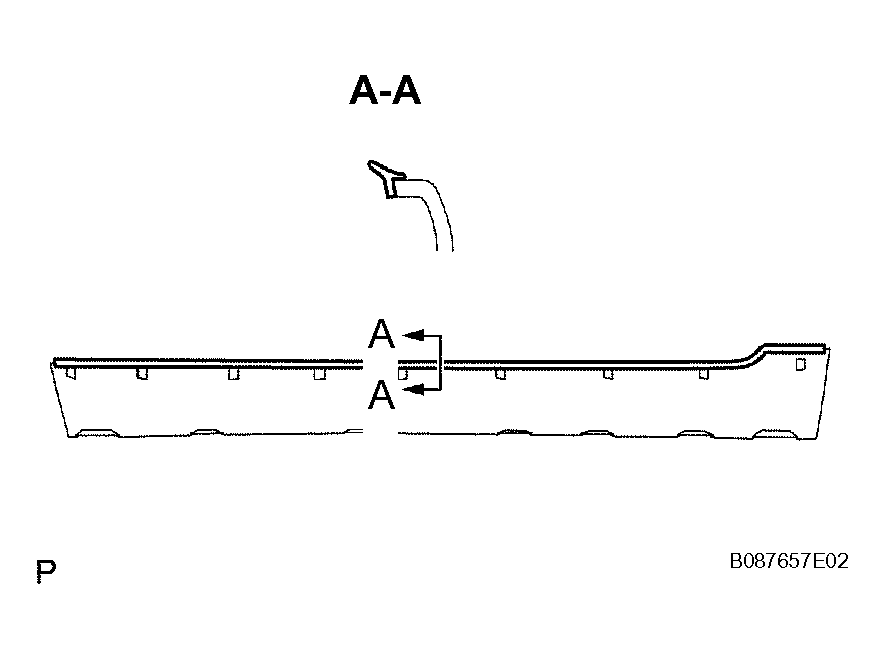

  Fig 9: Installing New No. 1 Body Outside Molding Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install each clip in the position shown in Fig 10.
  NOTE: If you install the clips wrongly, the installation of the rocker panel molding would be improper.

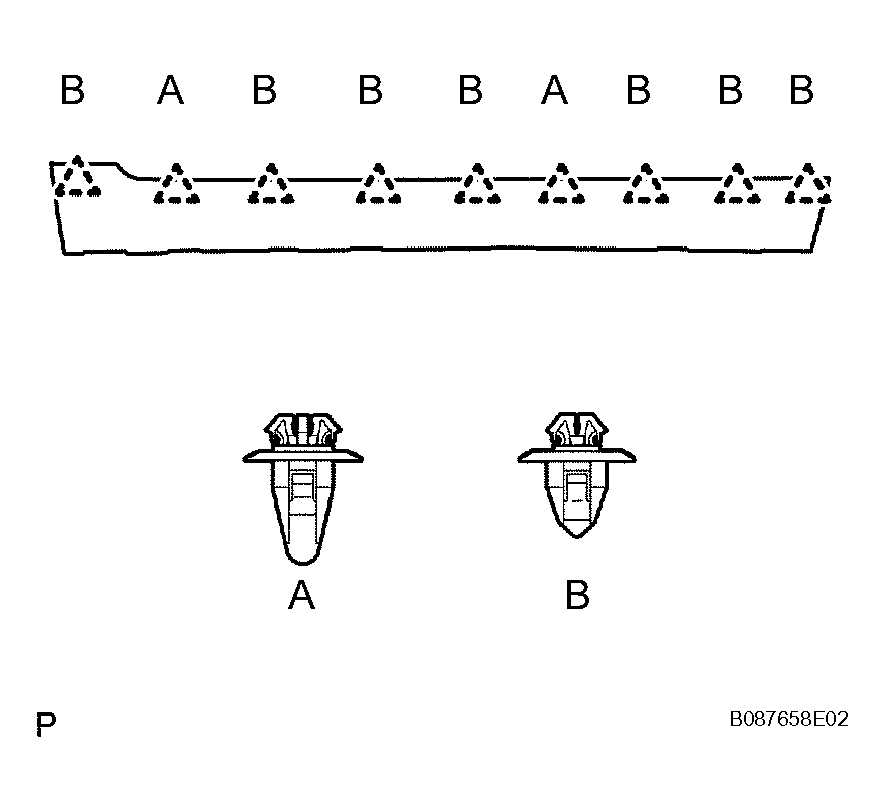

  Fig 10: Installing Each Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 9 clips and install the rocker panel molding.

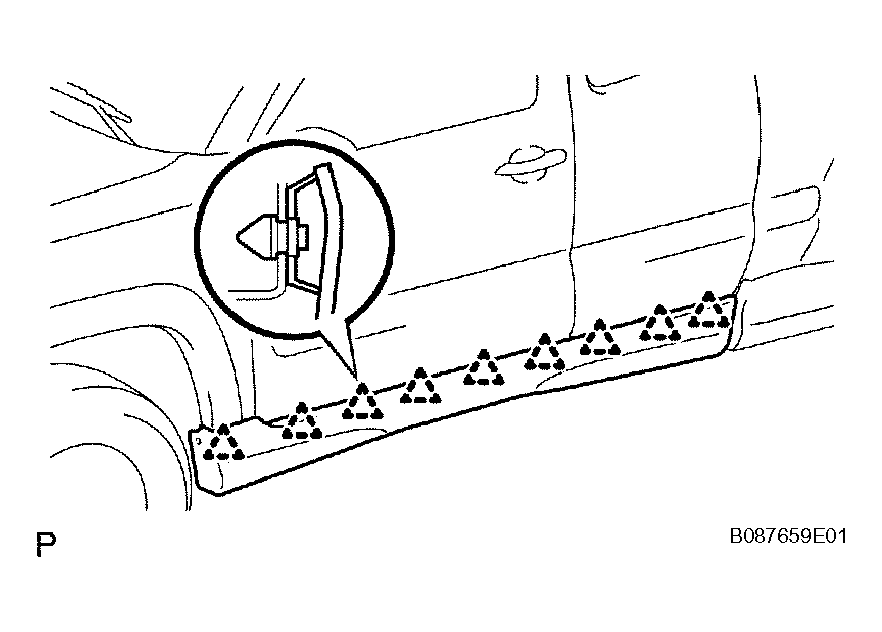

  Fig 11: Installing Rocket Panel Molding & Engaging Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Tighten the 4 screws.

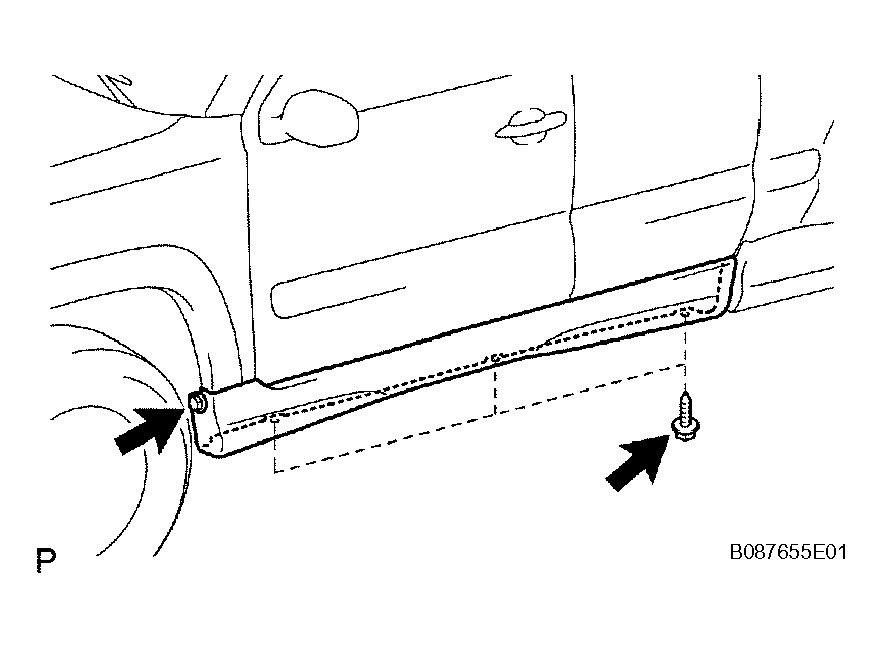

  Fig 12: Tightening Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
