Rear Body Side Panel Protector: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR BODY SIDE PANEL PROTECTOR
    1. for Long Body:
      1. Engage the 22 claws and install the rear body side panel protector.
    2. for Short Body:
      1. Engage the 18 claws and install the rear body side panel protector.
    3. Install the 2 clips.

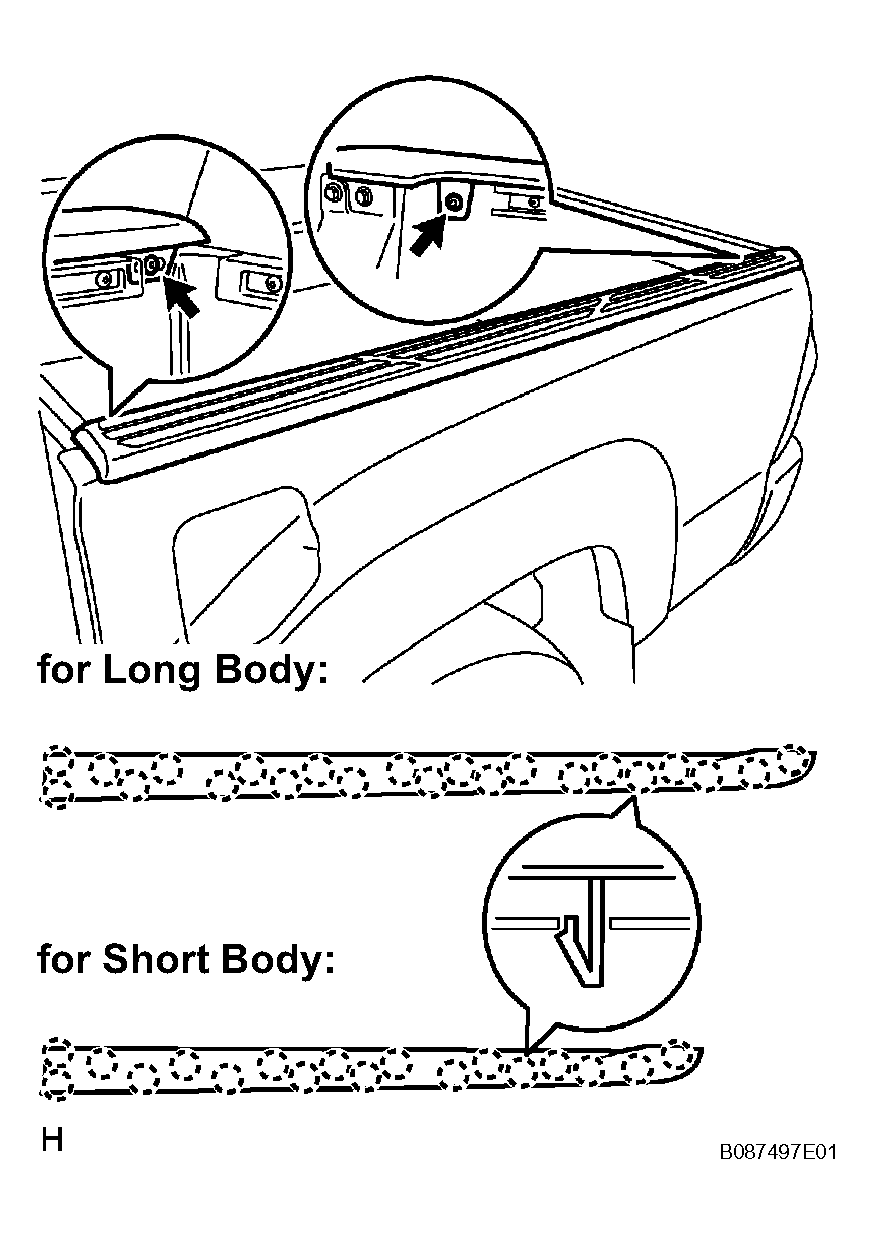

      Fig 1: Installing Rear Body Side Panel Protector & Engaging Claws
      G04413712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
