Fender Panel Mudguard: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR QUARTER PANEL MUDGUARD
1. for 2WD:
  1. Install the rear quarter panel mudguard with the 3 screws.

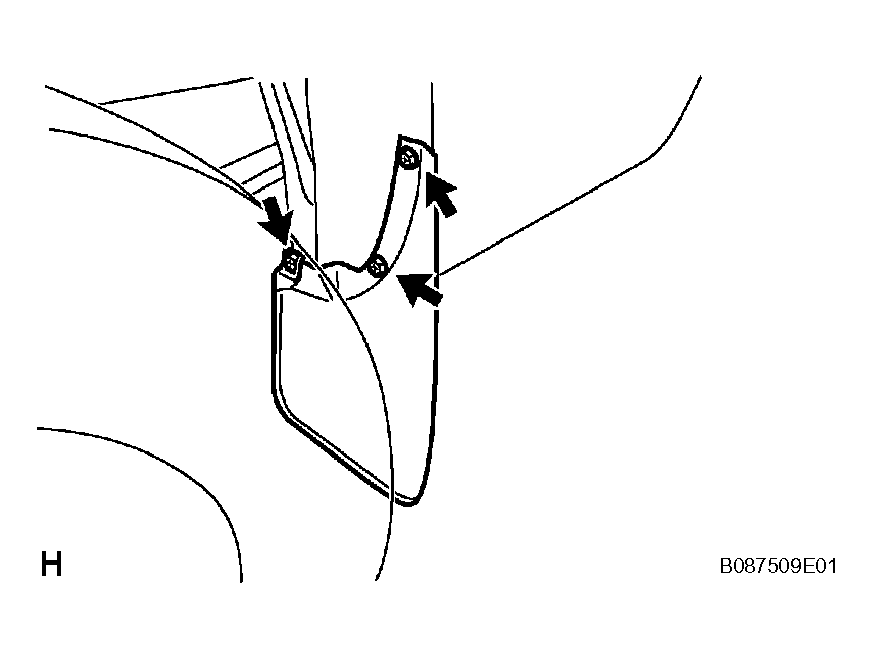

    Fig 1: Installing Rear Quarter Panel Mudguard With Screws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for 4WD and Pre Runner:
  1. Install the rear quarter panel mudguard with the 3 screws.
  2. Install the 3 clips.

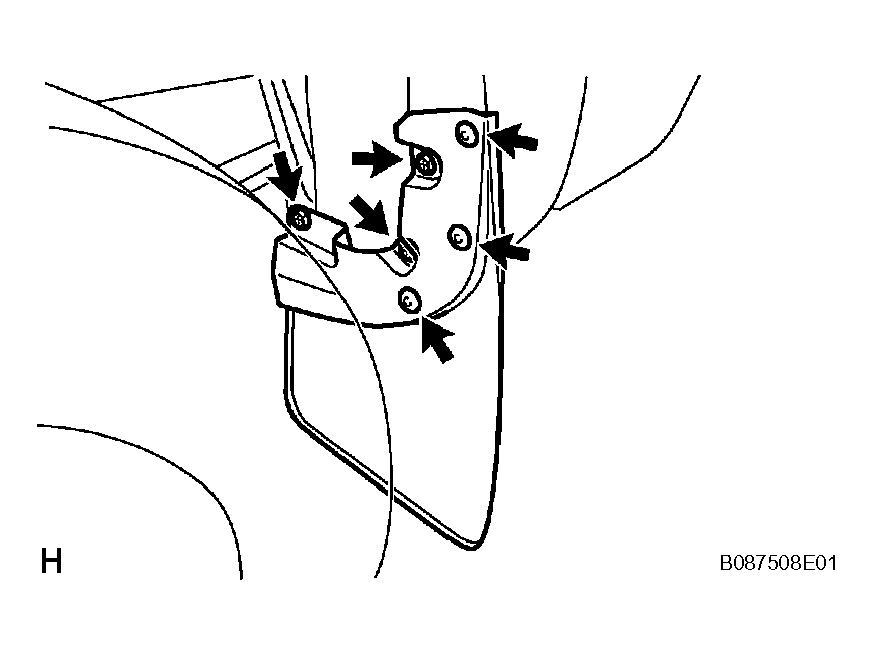

    Fig 2: Installing Rear Quarter Panel Mudguard With Screws & Clips
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER MUDGUARD
1. Install the front fender mudguard with the 3 screws.
2. Install the 3 clips.

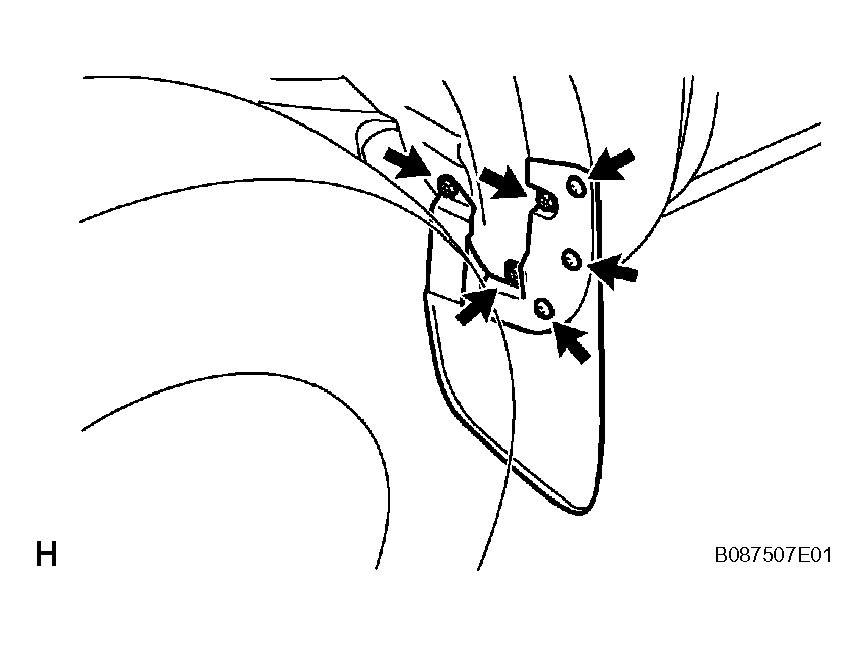

  Fig 3: Installing Front Fender Mudguard With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
