Transfer Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. DRAIN TRANSFER OIL
  3. REMOVE TRANSFER CASE LOWER PROTECTOR
    1. Remove the 4 bolts and remove the transfer case lower protector.

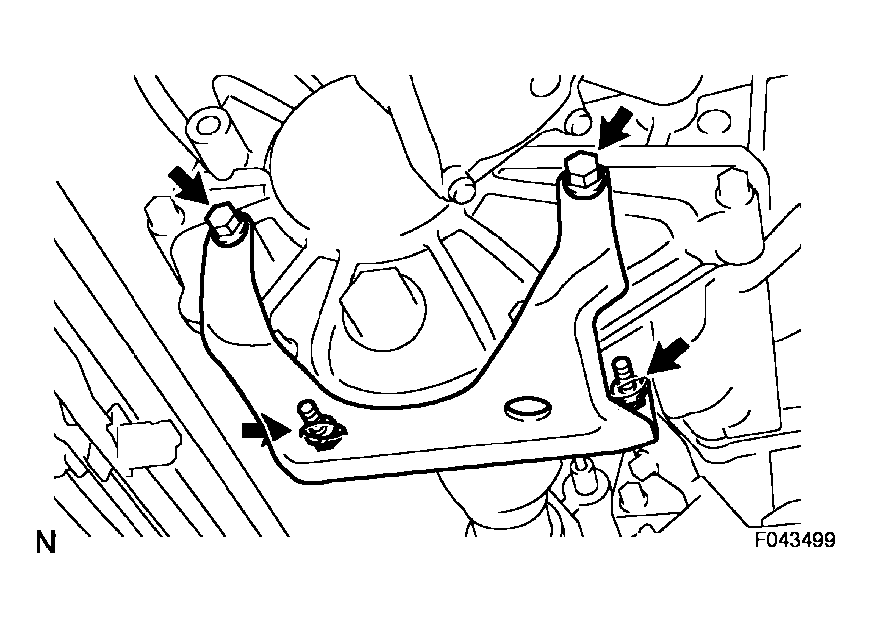

    Fig 1: Removing Transfer Case Lower Protector
    G04369231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE MANUAL TRANSMISSION ASSEMBLY (for R155F) (See  REMOVAL  )
  5. REMOVE MANUAL TRANSMISSION ASSEMBLY (for RA60F) (See  REMOVAL  )
  6. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (for A750F) (See  REMOVAL  )
  7. REMOVE TRANSFER ASSEMBLY
  1. Remove the 8 transfer adaptor rear mounting bolts.
  2. Pull the transfer straight up and remove it from the transmission.
NOTE: Take care not to damage the adaptor rear oil seal with the transfer input gear spline.

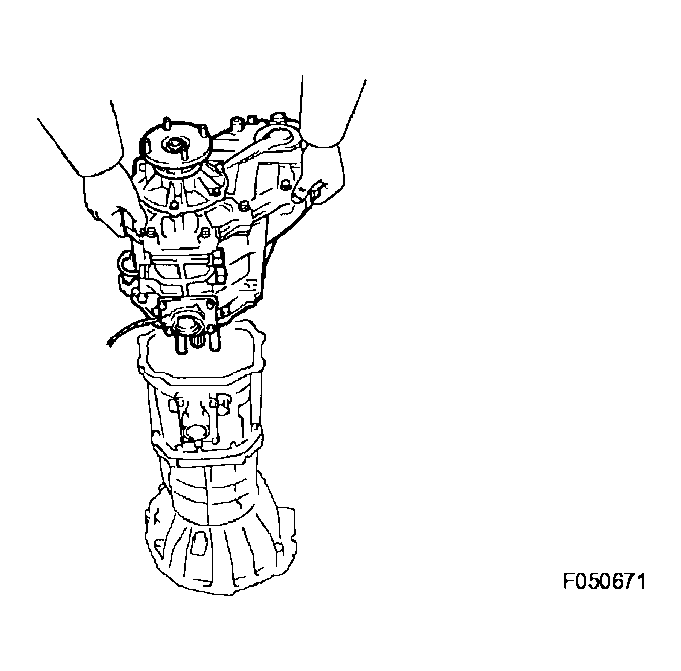

Fig 2: Pulling Transfer Assembly
G04369232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
