Transfer Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

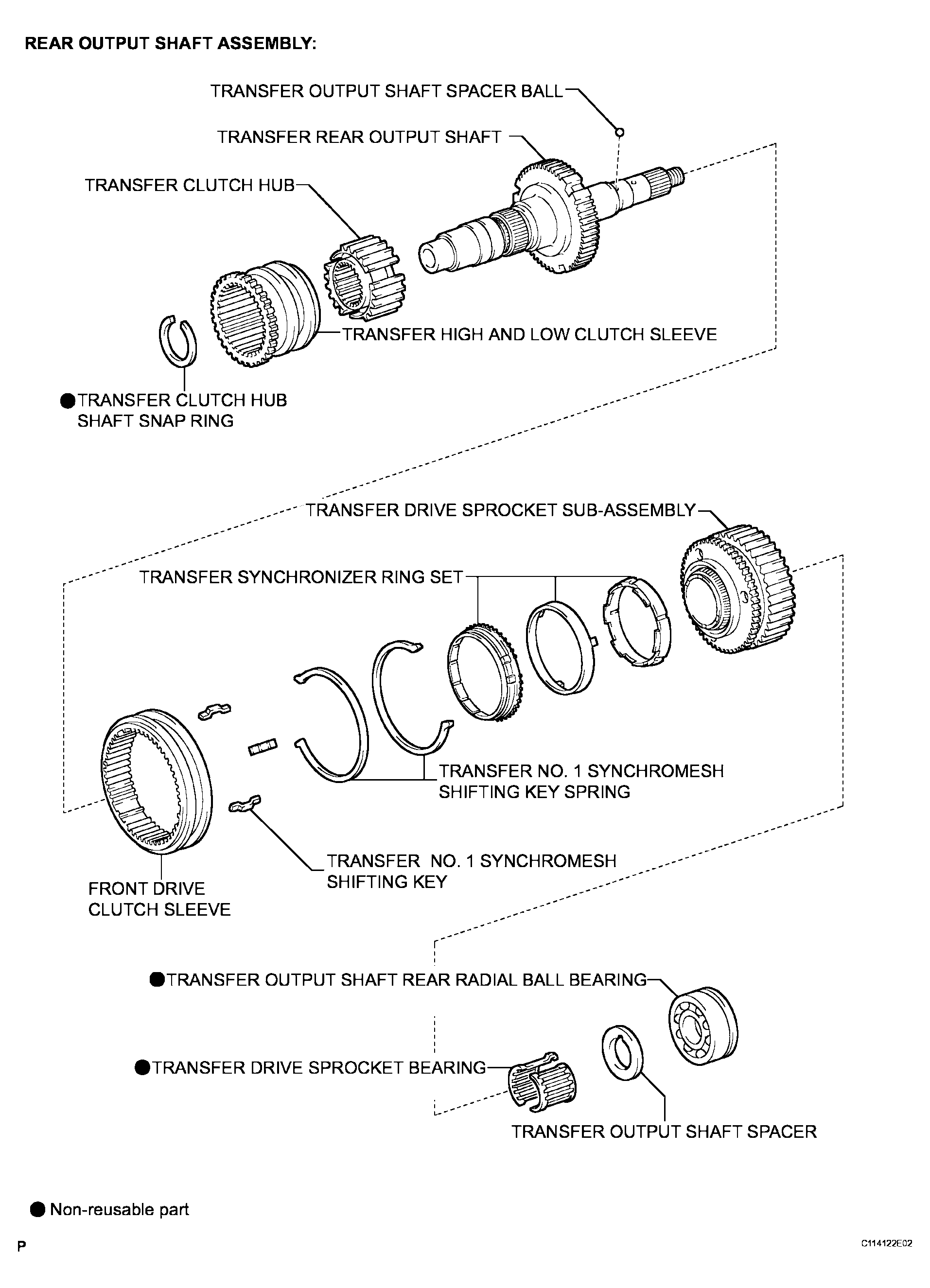

Fig 1: Exploded View Of Transfer Assembly Components & Replacements (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

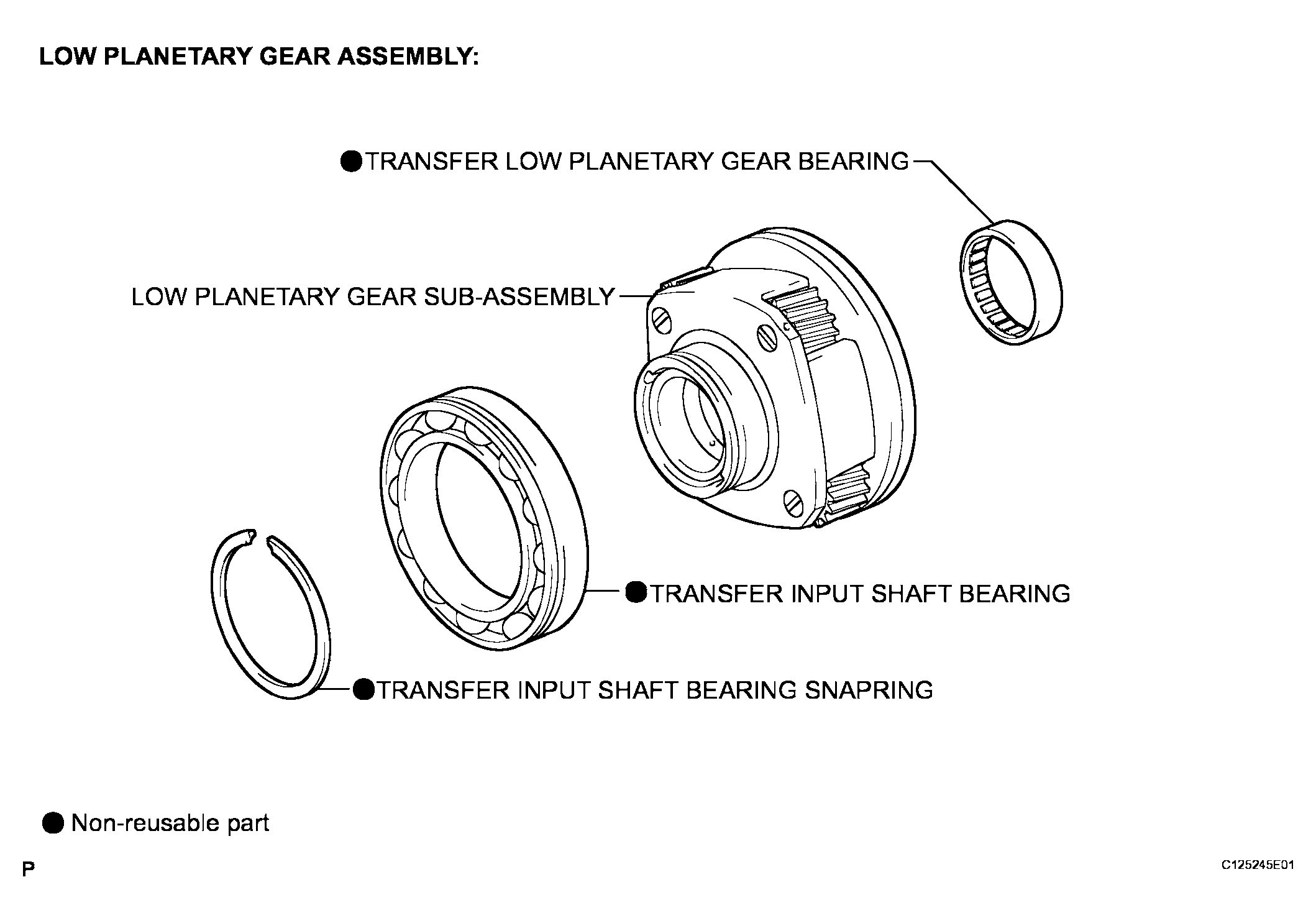

Fig 2: Exploded View Of Transfer Assembly Components & Replacements (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

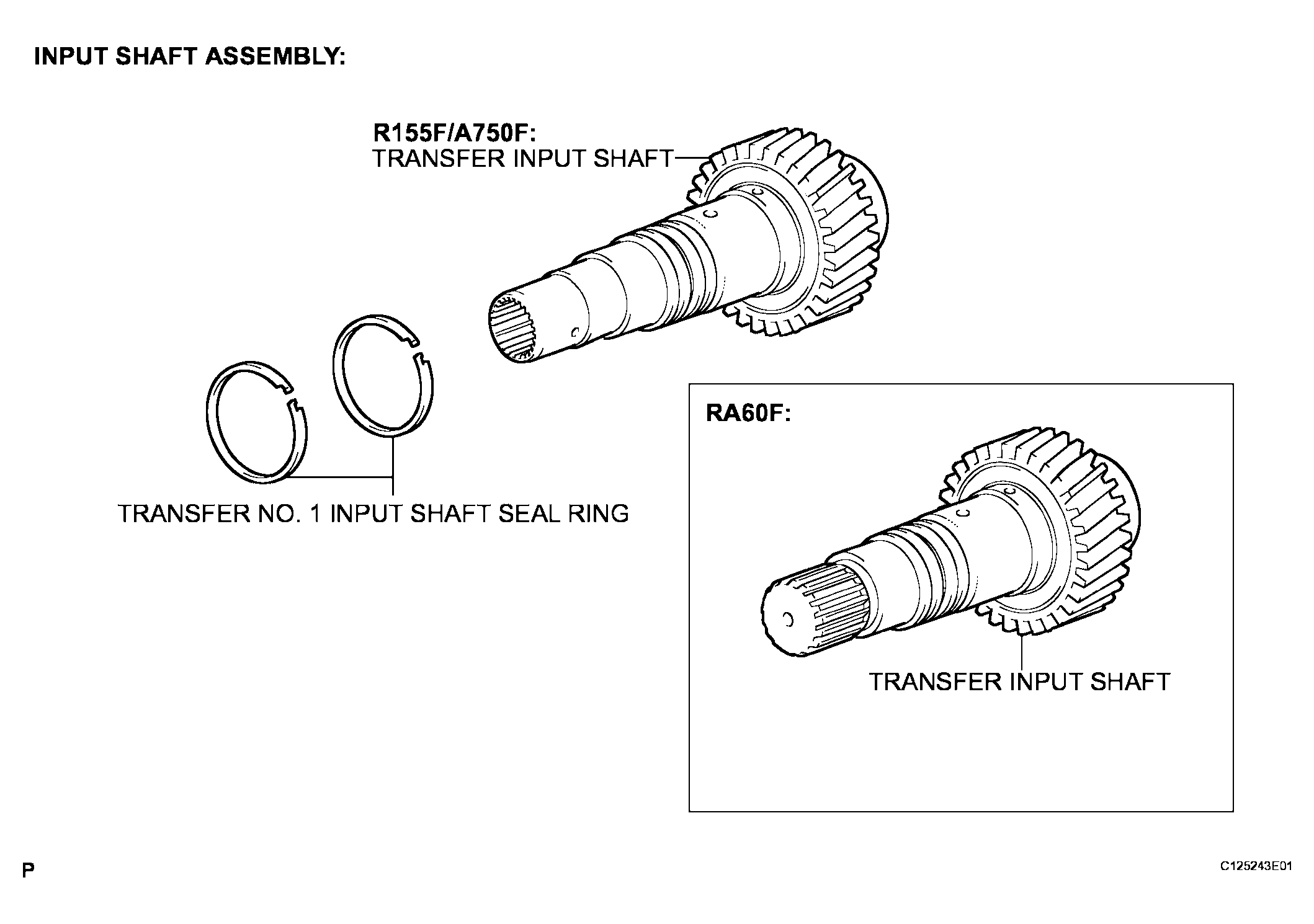

Fig 3: Exploded View Of Transfer Assembly Components & Replacements (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

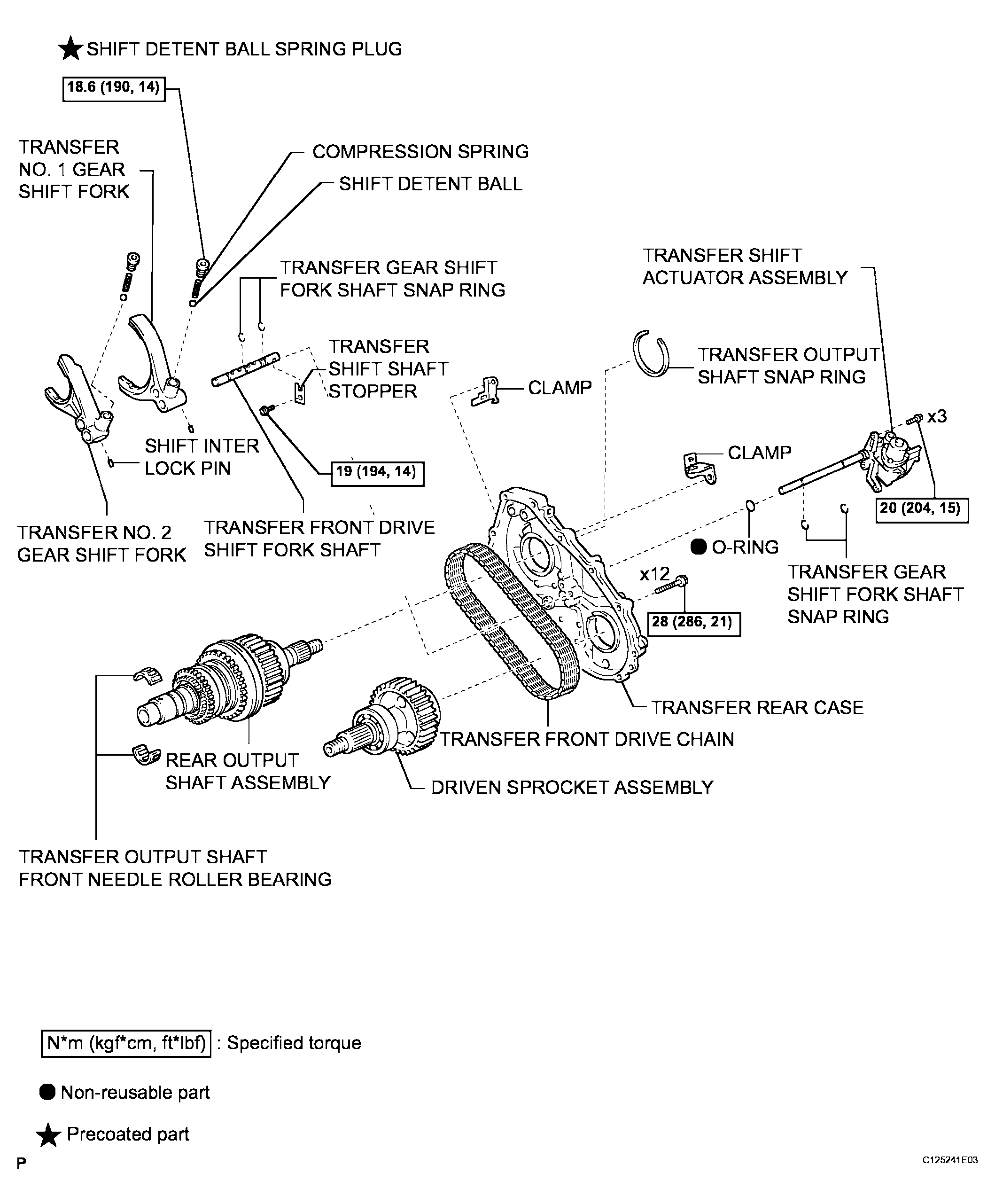

Fig 4: Exploded View Of Transfer Assembly Components & Replacements (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

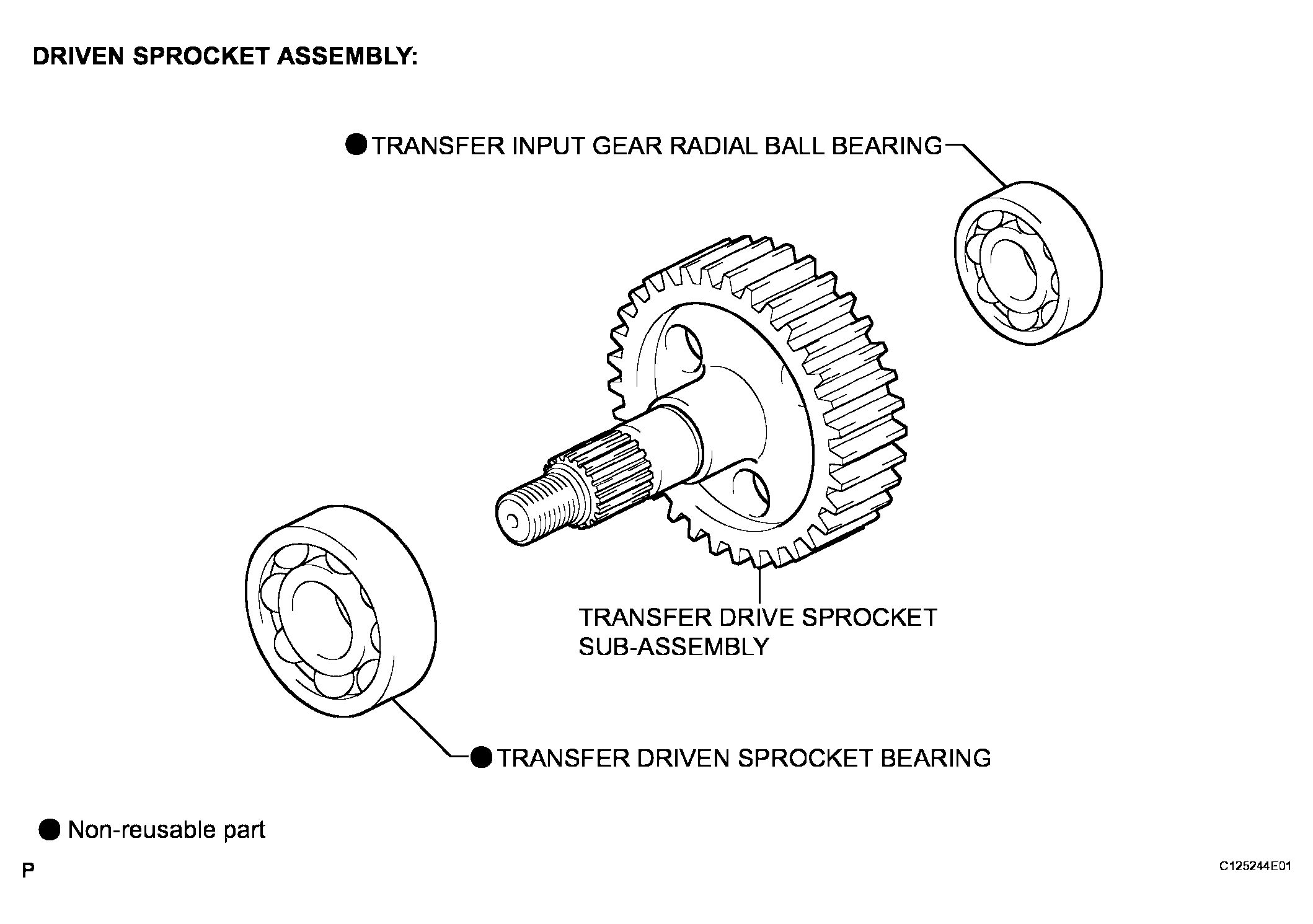

Fig 5: Exploded View Of Transfer Assembly Components & Replacements (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

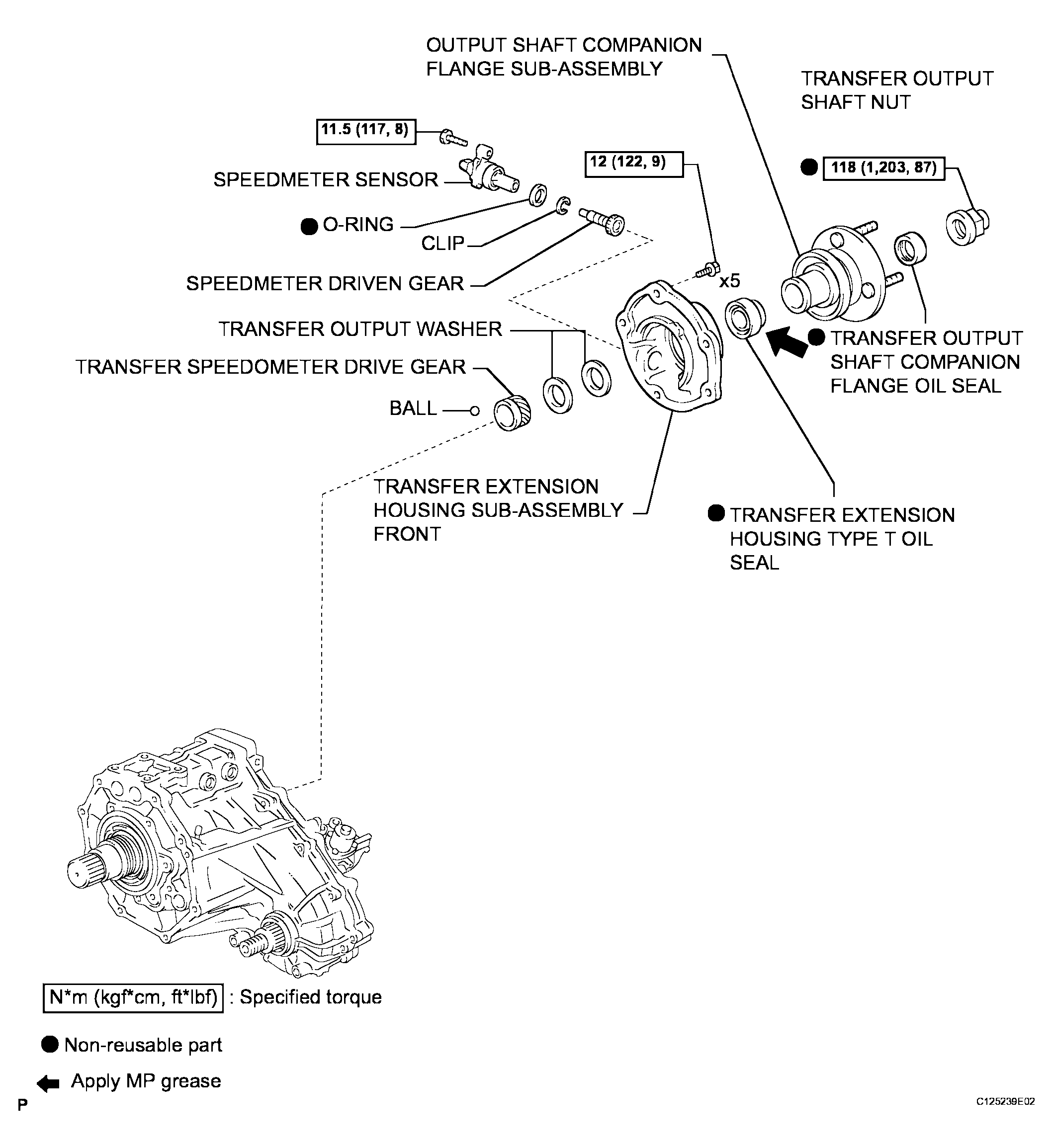

Fig 6: Exploded View Of Transfer Assembly Components & Replacements (6 Of 8)

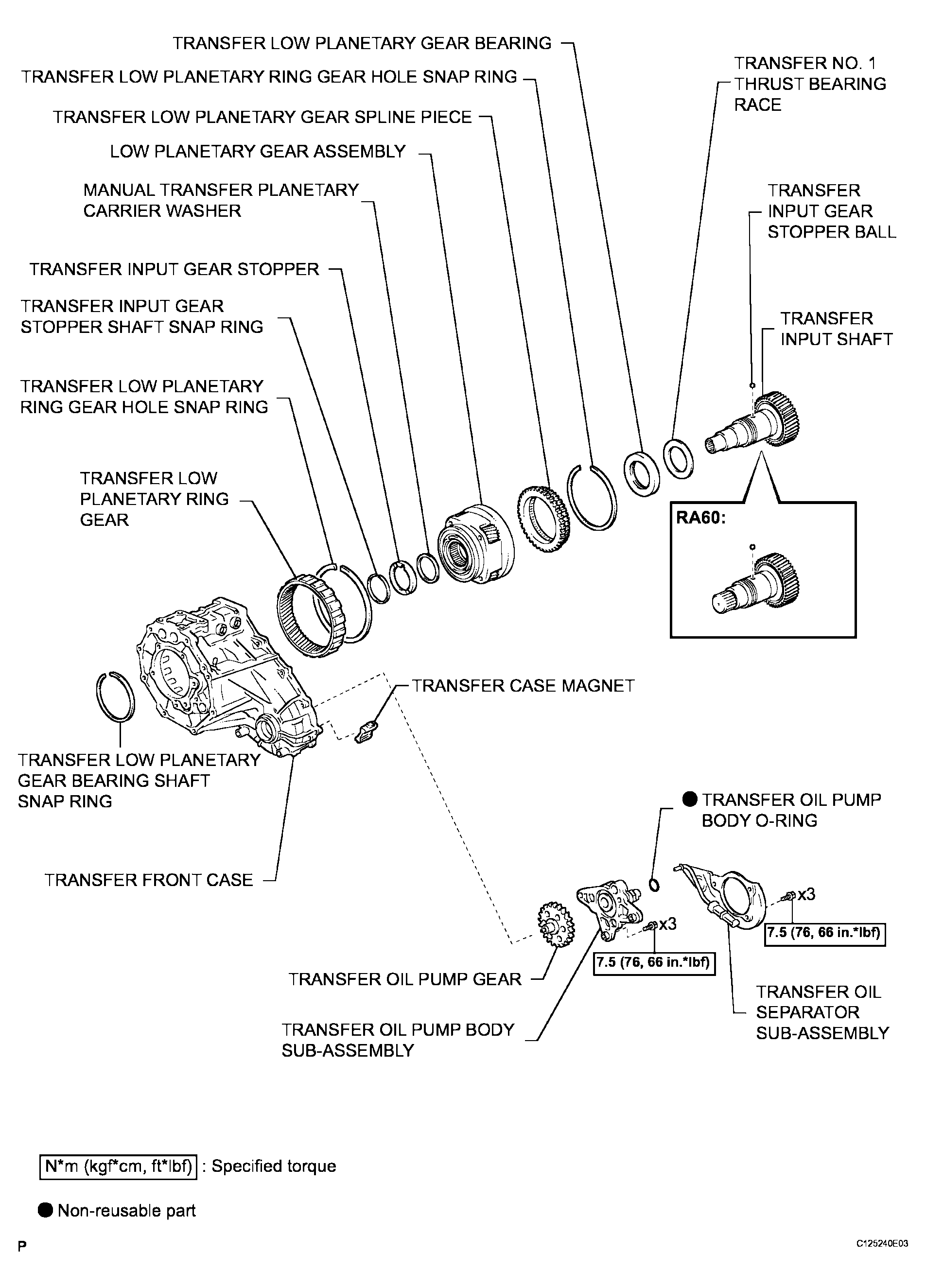

Fig 7: Exploded View Of Transfer Assembly Components & Replacements (7 Of 8)

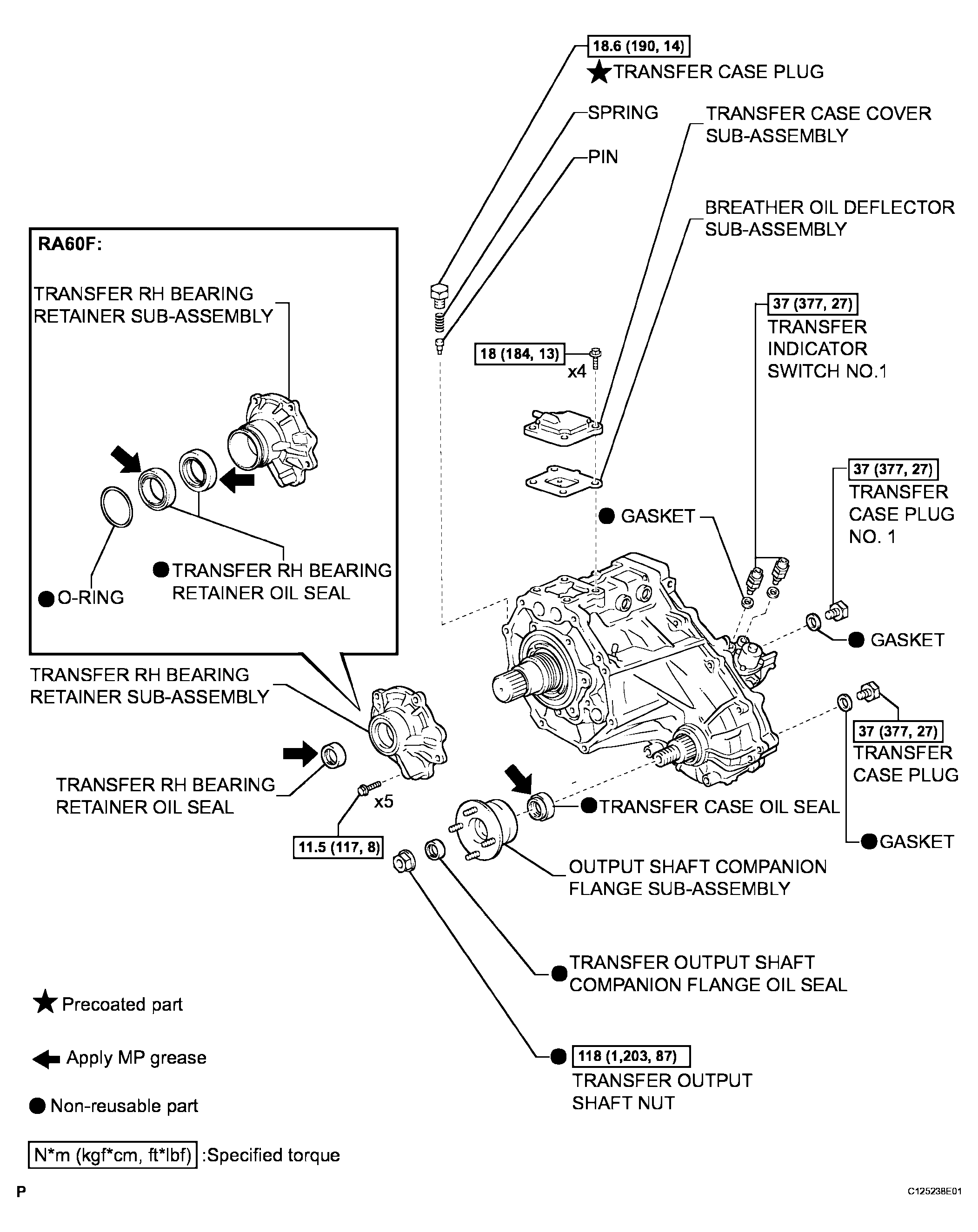

Fig 8: Exploded View Of Transfer Assembly Components & Replacements (8 Of 8)
