Clutch Switch: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CLUTCH SWITCH ASSEMBLY
1. Install the clutch switch assembly and tighten the nut.
2. Connect the connector.

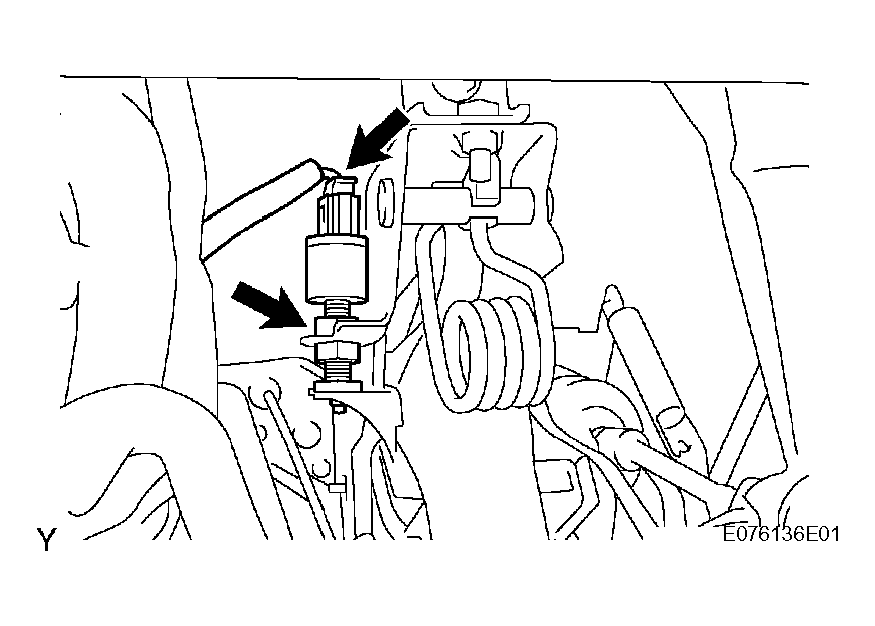

  Fig 1: Installing Clutch Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DRIVER SIDE JUNCTION BLOCK
1. Install the driver side junction block assembly with the 2 nuts.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
2. Install the bracket with the 2 bolts.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (See INSTALLATION )
CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See REASSEMBLY )

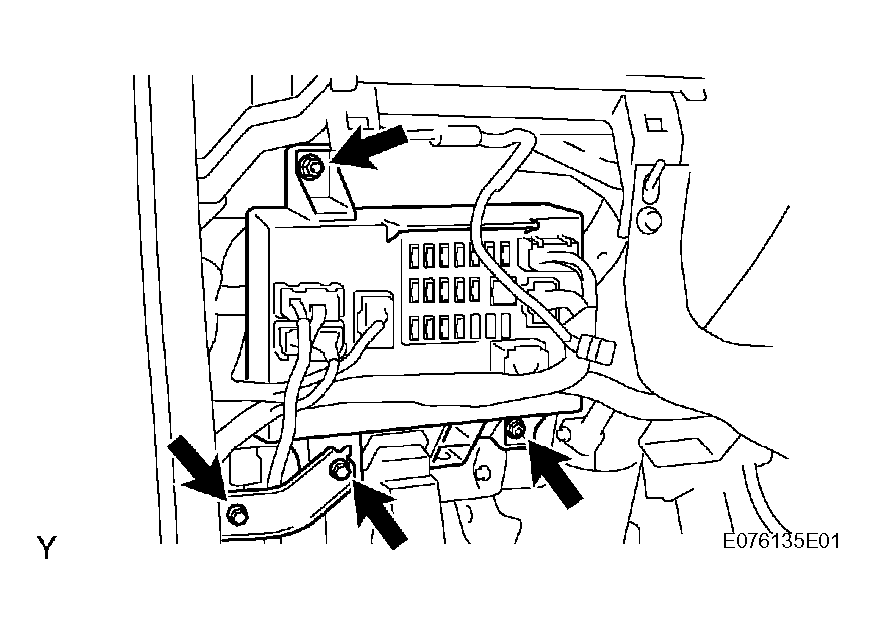

Fig 2: Installing Driver Side Junction Block Assembly With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See INSTALLATION )
INSTALL INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See INSTALLATION )
INSTALL COWL SIDE TRIM BOARD LH (for Regular Cab) (See INSTALLATION )
INSTALL COWL SIDE TRIM BOARD LH (for Access Cab) (See INSTALLATION )
INSTALL COWL SIDE TRIM BOARD LH (for Double Cab) (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (for Regular Cab) (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (for Access Cab) (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (for Double Cab) (See INSTALLATION )
INSTALL FRONT FLOOR FOOTREST (See FRONT FLOOR FOOTREST )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
