Component Location Index

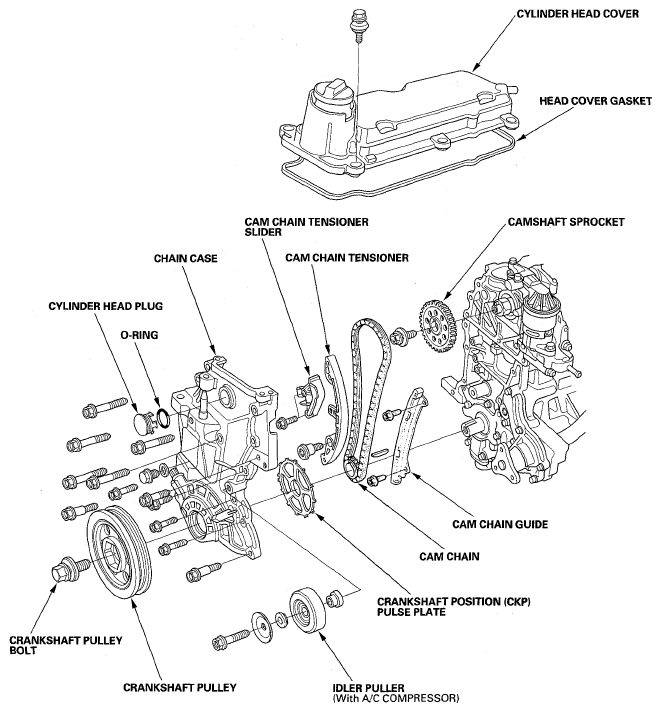

Fig 1: Identifying Cylinder Head Components (1 Of 3)
G05454156Courtesy of AMERICAN HONDA MOTOR CO., INC.

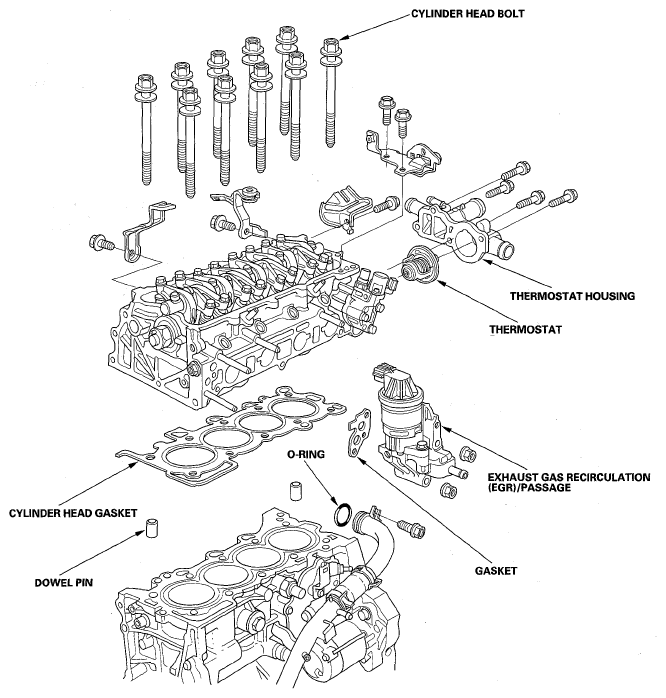

Fig 2: Identifying Cylinder Head Components (2 Of 3)
G05454157Courtesy of AMERICAN HONDA MOTOR CO., INC.

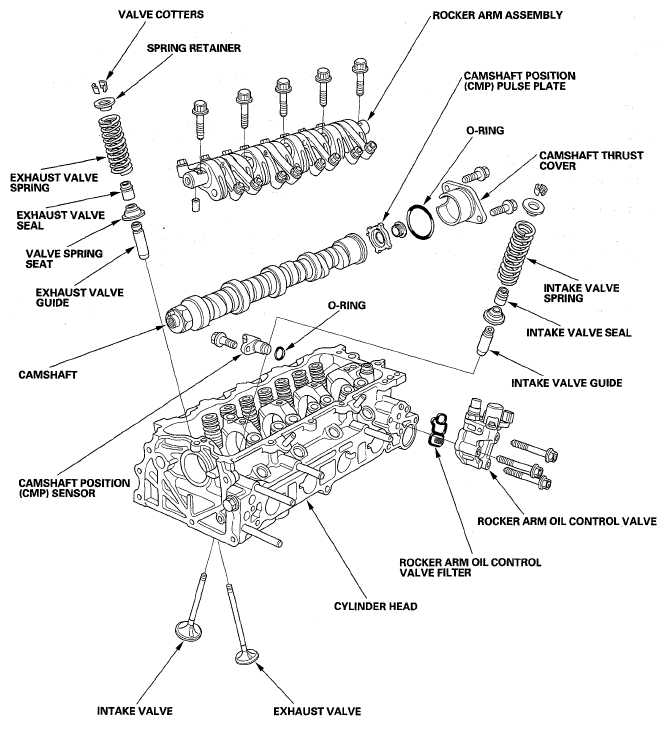

Fig 3: Identifying Cylinder Head Components (3 Of 3)
G05454158Courtesy of AMERICAN HONDA MOTOR CO., INC.
