EVAP Canister Purge Valve Replacement

  1. Disconnect the EVAP canister purge valve connector (A), and hose (B).

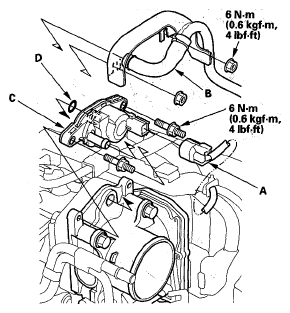

    Fig 1: EVAP Canister Purge Valve Connector And Hose With Torque Specifications
    G05454903Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the EVAP canister purge valve (C).
  3. Install the parts in the reverse order of removal with a new O-ring (D).
