Frame Repair Chart
>>
Top View
Top View

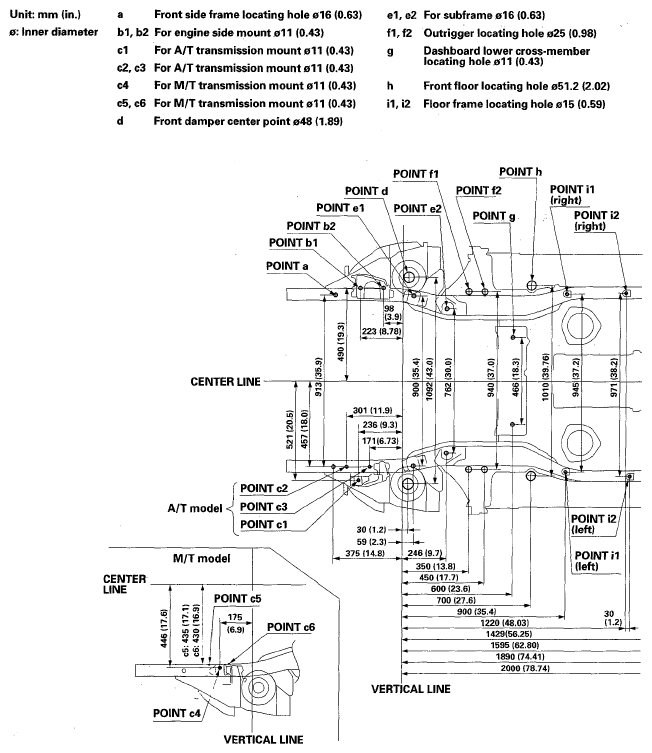

Fig 1: Frame Repair Chart - Top View (1 Of 2)

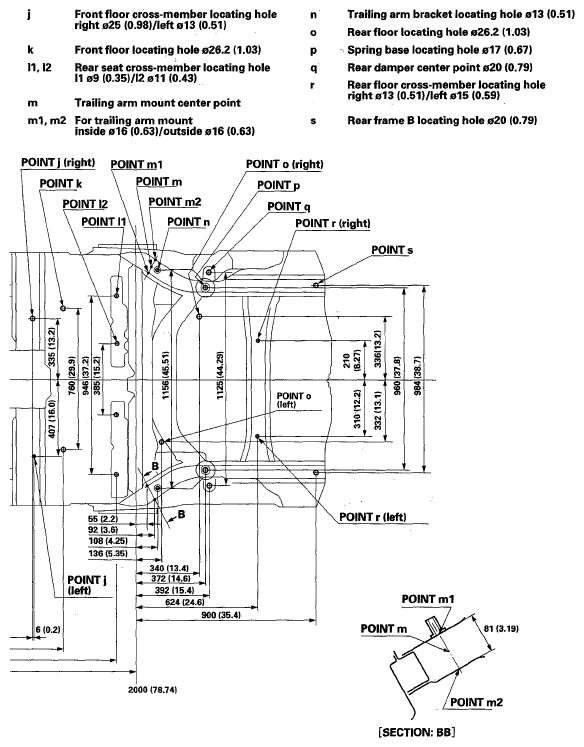

Fig 2: Frame Repair Chart - Top View (2 Of 2)
