LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2007
>>
Element SC, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Trans
>>
Manual Transmission
>>
Countershaft Reassembly
>>
Exploded View
Exploded View

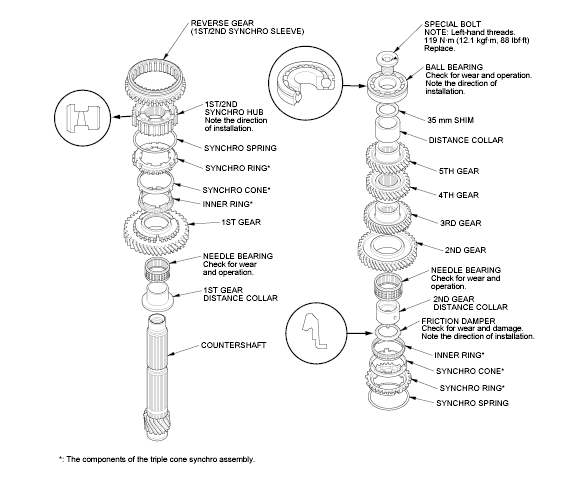

Fig 1: Identifying Countershaft Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
