Component Location Index: 2WD

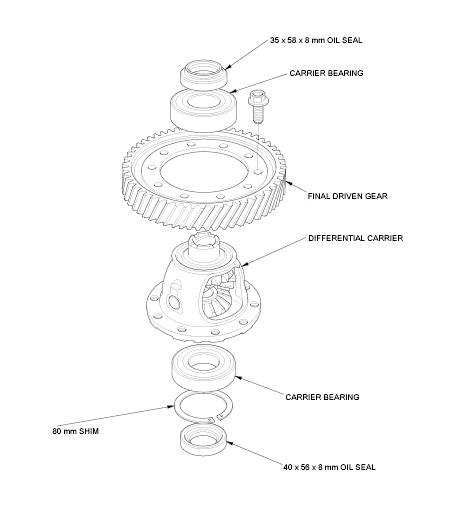

Fig 1: Identifying M/T Differential Replacement Components (2WD)

G00485808

Courtesy of AMERICAN HONDA MOTOR CO., INC.
