Steering Column Inspection: Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column (see REMOVAL  ).
  2. Check these items:
    • Check for loose bearing mounting nuts (A). If they are loose, replace the column as an assembly.
    • Check the steering column ball bearings (B) and the steering joints (C) for play and proper movement. If any bearing is noisy or has excessive play, replace the steering column as an assembly.
    • Check the sliding capsules (D) for distortion or breakage. If there is distortion or breakage, replace the steering column as an assembly.
    • Check the tilt mechanism and telescopic mechanism for movement and damage.
    • Apply multipurpose grease to the steering column.
      NOTE: Do not use silicone grease.

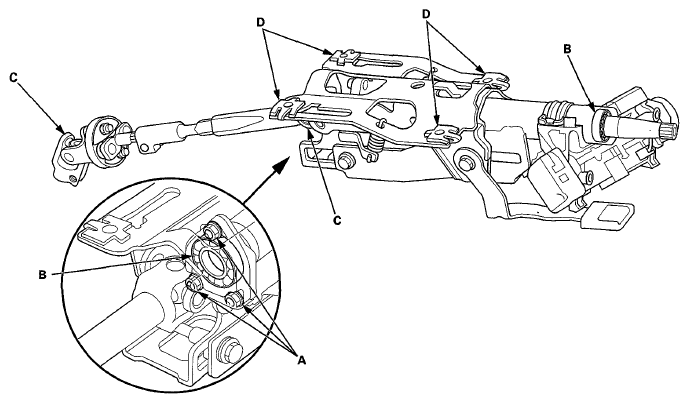

      Fig 1: Identifying Bearing Mounting Nuts, Steering Column Ball Bearings, Steering Joints And Sliding Capsules
      G06423733Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the steering column (see INSTALLATION  ).
