Door Key Cylinder Switch Test: Overview

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's door panel: (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector (A) from the door lock actuator (B).

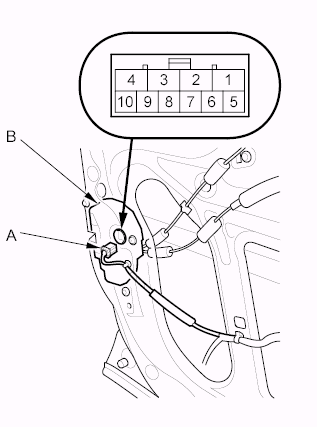

    Fig 1: Identifying 10P Connector And Door Lock Actuator
    G00506768Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Identifying 10P Connector And Door Lock Actuator
    G00506769Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not specified, the key cylinder switch is faulty; replace the door latch: (see FRONT DOOR LATCH REPLACEMENT ).
