Rear Brake Disc Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Keep any grease off the brake disc/drum and the brake pads.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the rear wheel.
  3. Release the parking brake lever fully.
  4. Remove the brake hose mounting bolt (A).

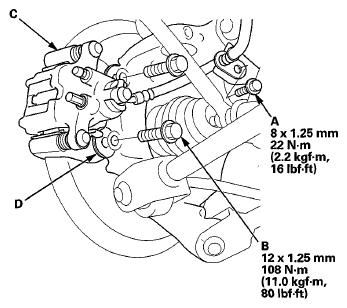

    Fig 1: Brake Hose Mounting Bolt, Brake Caliper Bracket Mounting Bolts, Washers And Caliper Assembly With Torque Specification
    G06419431Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the brake caliper bracket mounting bolts (B), and remove the caliper assembly (C) from the knuckle. To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage. Do not twist the brake hose and the parking brake cable excessively.
    NOTE: Make sure the washers (D) are in position on reassembly, if they are removed (see step 6 on page REAR SUSPENSION SYSTEM ).
  6. Remove the brake disc/drum flathead screws (A).

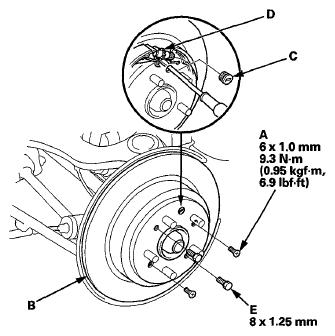

    Fig 2: Brake Disc/Drum Flathead Screws, Brake Disc/Drum, Access Plug And Adjuster Nut With Torque Specification
    G06419432Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the brake disc/drum (B) from the hub bearing unit.
    NOTE:
    • Remove the access plug (C), then if necessary, turn the adjuster nut (D) with a flat-tip screwdriver until the shoes become loose.
    • If the brake disc/drum is stuck to the hub bearing unit, thread two 8 x 1.25 mm bolts (E) into the brake disc/drum to push it away from the hub bearing unit. Turn each bolt 90 degrees at a time to prevent the brake disc/drum from binding.
  8. Install the brake disc/drum in the reverse order of removal, and note these items:
    • Adjust the parking brake (see PARKING BRAKE INSPECTION AND ADJUSTMENT  ).
    • Before installing the brake disc/drum, clean the mating surfaces between the hub bearing unit and the inside of the brake disc/drum.
  9. Inspect the brake disc/drum runout (see REAR BRAKE DISC INSPECTION  ).
  10. Clean the mating surfaces between the brake disc/drum and the inside of the wheel, then install the rear wheel.
