DTC 2607: XM Diag

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Check the vehicle battery condition first (see BATTERY TEST ).
  • This navigation DTC sets when a problem (open or short) is detected in the GA-Net bus.
  • Before you troubleshoot, make sure to follow the General Troubleshooting Information (see GENERAL TROUBLESHOOTING INFORMATION  ).
  1. Clear the hard error code (see HOW TO CLEAR ERROR HISTORY  ).
  2. Turn the ignition switch to LOCK (0) and then back to ON (II).
  3. Check for the hard error code (see HOW TO CHECK ERROR HISTORY (NAVIGATION DTCS)  ).

    Is DTC 2601 Indicated?

    YES  -Do the DTC 2601 troubleshooting.

    NO  -Go to next step.

  4. Go into the System Diagnostic Mode, and select the Self-Diagnosis Mode in the Select Diagnosis Items menu (see SYSTEM LINKS  ).
  5. Check the System Links.

    Is the XM icon red?

    YES  -Go to next step.

    NO  -Intermittent failure, the system is OK at this time.

  6. Turn the ignition switch to LOCK (0).
  7. Check for poor connections or loose terminals at the XM receiver connector A (14P) and the navigation display unit 28P connector.

    Are the connections OK?

    YES  -Go to next step.

    NO  -Repair poor connections or loose terminals.

  8. Disconnect XM receiver connector A (14P) and the navigation display unit 28P connector.
  9. Connect XM receiver connector A (14P) terminals No. 11 and No. 12 with a jumper wire.
    Fig 1: Connecting XM Receiver Connector A (14P) Terminals No. 11 And No. 12 With Jumper Wire
    G06420699Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Check for continuity between navigation display unit 28P connector terminals No. 12 and No. 26.

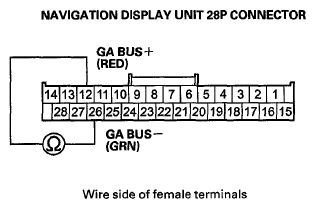

    Fig 2: Checking Continuity Between Navigation Display Unit 28P Connector Terminals No. 12 And No. 26
    G06420700Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Check the XM error codes (see ERROR CODES ). If any codes are detected, go to the applicable troubleshooting in audio (XM) service information.

    NO  -Repair an open in the wire between the navigation display unit and the XM receiver.
