2WD model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the EVAP canister vent shut valve 2P connector (A).

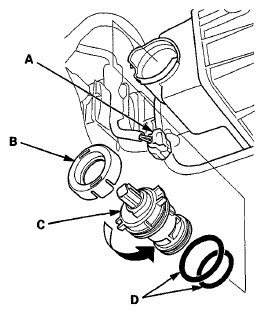

    Fig 1: Identifying EVAP Canister Vent Shut Valve 2P Connector
    G06423013Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the cap (B).
  3. Remove the EVAP canister vent shut valve (C).
  4. Install the parts in the reverse order of removal with new O-rings (D) and a new cap.
    NOTE: Do not coat the O-rings with oil.
