4WD model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift.
  2. Remove the muffler (see 4WD MODEL ).
  3. Support the rear differential with a transmission jack, then remove the rear differential mounting bolts (A and B), and lower the rear differential (C).

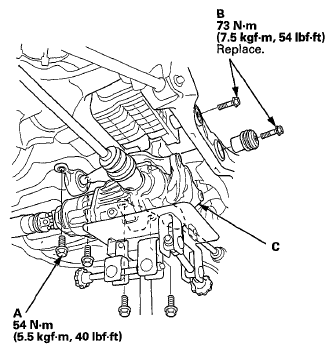

    Fig 1: Rear Differential Mounting Bolts And Rear Differential With Torque Specifications
    G06423003Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the quick-connect fitting (A), the hoses (B), the FTP sensor 3P connector (C), and the EVAP canister vent shut valve 2P connector (D).

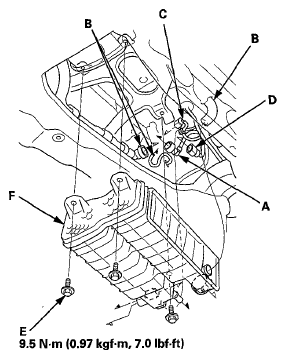

    Fig 2: Quick-Connect Fitting, FTP Sensor 3P Connector And EVAP Canister Vent Shut Valve 2P Connector With Torque Specifications
    G06423004Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the bolts (E) and the EVAP canister (F).
  6. Remove the EVAP canister vent shut valve (A) and the FTP sensor (B) from the EVAP canister (C).
    Fig 3: Identifying EVAP Canister Vent Shut Valve And FTP Sensor
    G06423005Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Reassemble the EVAP canister with new O-rings (D) and a new retainer (E), and new cap (F).
    NOTE: Do not coat the O-rings with oil.
  8. Install the parts in the reverse order of removal.
