2WD model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift.
  2. Remove the wheel sensor harness clamps (A)

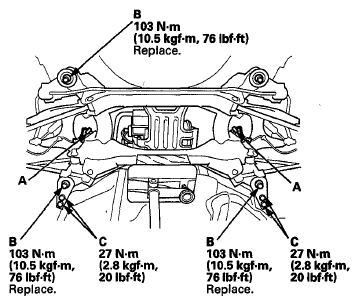

    Fig 1: Wheel Sensor Harness Clamps With Torque Specifications
    G06422998Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Support the rear subframe with a transmission jack and a wooden block as shown.
  4. Remove the rear subframe mounting bolts (B and C).
  5. Carefully lower the transmission jack and rear subframe about 50 mm.
    NOTE: Be careful not to damage the connecting parts.
  6. Remove the bolt (A), and disconnect the hoses (B), the EVAP canister vent shut valve 2P connector (C), and the FTP sensor 3P connector (D).

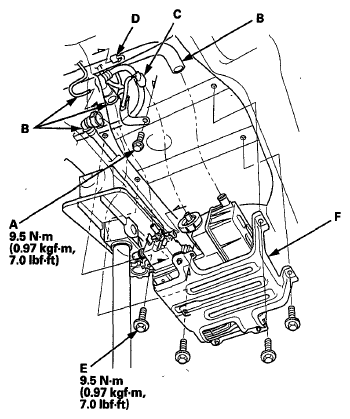

    Fig 2: EVAP Canister Vent Shut Valve 2P Connector And Bolt With Torque Specifications
    G06422999Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the bolts (E), then remove the EVAP canister assembly (F).
  8. Remove the EVAP canister (A) from the EVAP canister bracket (B).

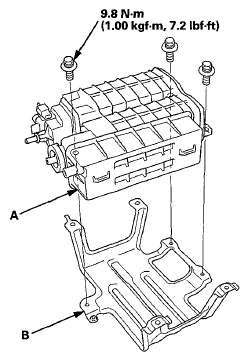

    Fig 3: EVAP Canister Assembly And Bolts With Torque Specifications
    G06423000Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the EVAP canister vent shut valve (A) and FTP sensor (B) from the canister (C).
    Fig 4: Identifying EVAP Canister Vent Shut Valve And FTP Sensor
    G06423001Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Reassemble the EVAP canister with new O-rings (D), and a new retainer (E), then install the EVAP canister bracket.
    NOTE: Do not coat the O-rings with oil.
  11. Install the EVAP canister assembly to the body.
    NOTE: Attach the bracket arm (A) to the body as shown.
    Fig 5: Identifying Bracket Arm
    G06423002Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install the parts in the reverse order of removal. Use new bolts when you install the rear subframe.
  13. Check the wheel alignment (see WHEEL ALIGNMENT ).
