Oil Pan Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Remove all of the old liquid gasket from the oil pan mating surfaces, the bolts, and the bolt holes.
Clean and dry the oil pan mating surfaces.
Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the oil pan mating surface of the engine block and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.
NOTE:
- Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
- If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.

  Fig 1: Identifying Liquid Gasket Applying Area On Broken Line
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the oil pan on the engine block.
Tighten the bolts in three steps, in the final step, torque the bolts, in sequence, to 12 N.m (1.2 kgf.m, 9 lbf.ft).
NOTE:
- Wait at least 30 minutes before filling the engine with oil.
- Do not run the engine for at least 3 hours after installing the oil pan.

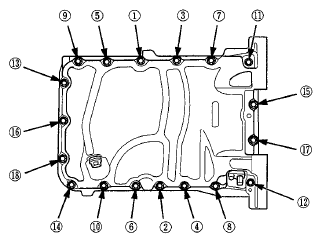

  Fig 2: Identifying Oil Pan Bolt Tightening Sequence
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the four bolts (A) securing the transmission, then install the torque converter cover (B).

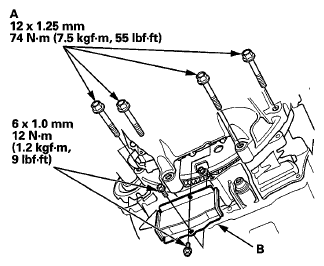

Fig 3: Transmission Securing Bolts And Torque Converter Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

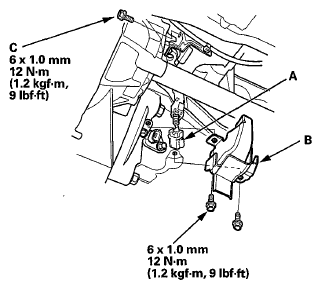

Connect the crankshaft position (CKP) sensor connector (A), then install the CKP sensor cover (B) and the bolt (C).

Fig 4: Crankshaft Position (CKP) Sensor Connector, CKP Sensor Cover And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear warm up three way catalytic converter (rear WU-TWC) bracket.

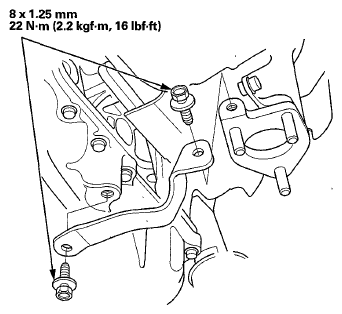

Fig 5: Rear Warm Up Three Way Catalytic Converter (Rear Wu-Twc) Bracket Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the engine is still in the vehicle, do the following steps.
Install exhaust pipe A using new gaskets and new self-locking nuts (see step 46 in ENGINE INSTALLATION ).
Install the engine undercover (see step 47 in ENGINE INSTALLATION ).
Refill the engine with the recommended engine oil (see step 4 in ENGINE OIL LEVEL CHECK ).
