Block Bore Code Locations

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Letters or bars have been stamped on the end of the engine block as a code for the size of each of the four main journal bores.

Use them, and the numbers or bars stamped on the crankshaft (codes for main journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

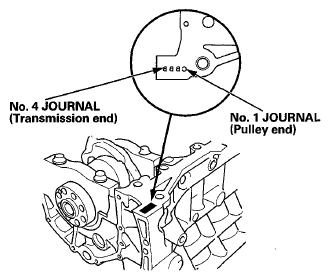

Fig 1: Identifying Block Bore Code Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

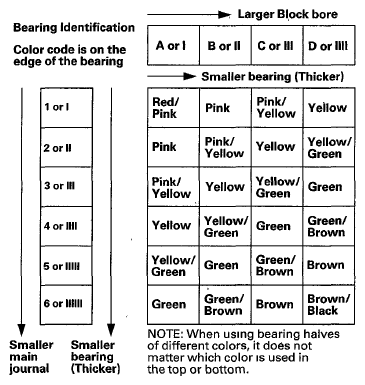

Fig 2: Bearing Color Code Identification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Main Journal Code Locations (Numbers or Bars)

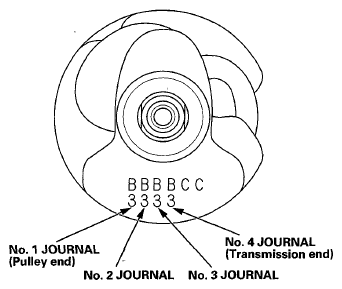

Fig 3: Identifying Main Journal Code Location (Numbers Or Bars)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
