During 6 Cylinder Mode
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

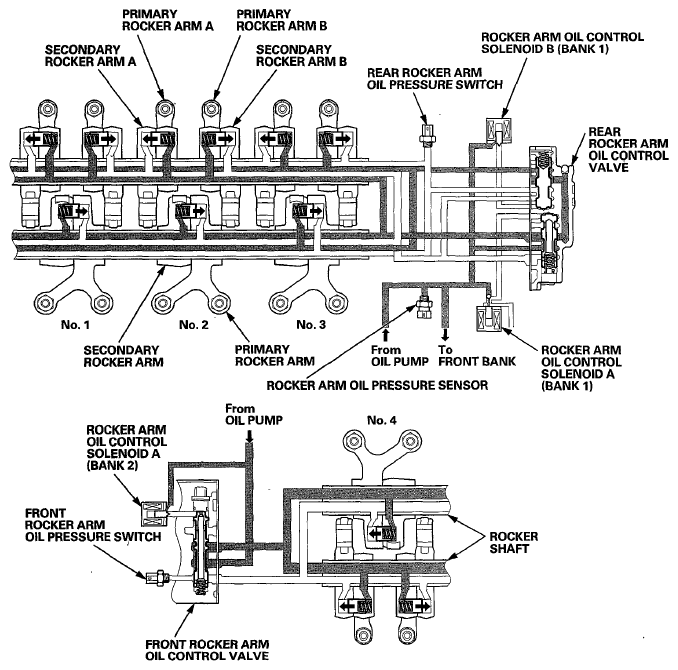

With the rocker arm oil control solenoids A (Bank 1), B (Bank 1), and A (Bank 2) OFF, the rocker arm oil control valves direct oil pressure. Oil pressure enters the primary rocker arm from the oil passage in the rocker shaft, and it moves the VTEC switching piston, sliding it into the secondary rocker arm and locking primary rocker arm and secondary rocker arms together. The rocker arms are lifted by the camshaft, and all cylinders are active.
