2WD model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift
  2. Remove the exhaust pipe hangers (A).

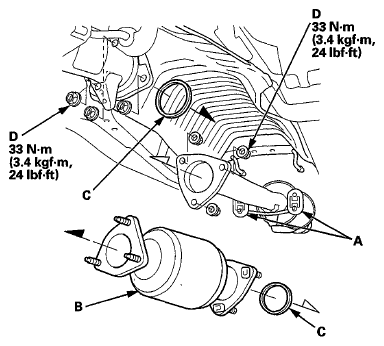

    Fig 1: Identifying Exhaust Pipe Hangers, Under-Floor TWC And Self-Locking Nuts
    G06422919Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the under-floor TWC (B).
  4. Install the parts in the reverse order of removal with new gaskets (C) and new self-locking nuts (D).
