MAF Sensor/IAT Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the MAF sensor/IAT senor up connector (A).

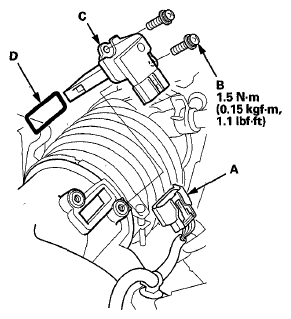

    Fig 1: MAF Sensor/IAT Senor up Connector And Screw With Torque Specifications
    G06422630Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screw (B).
  3. Remove the MAF sensor/IAT sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
