Knock Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold (see REMOVAL (+).
  2. Remove the injector base (see INJECTOR BASE REMOVAL AND INSTALLATION (+).
  3. Disconnect the knock sensor connector (A).

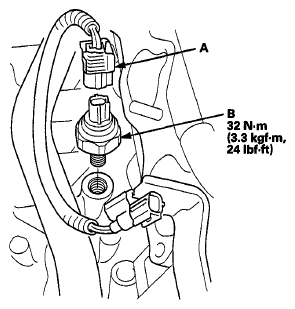

    Fig 1: Lnock Sensor Connector And Knock Sensor With Torque Specifications
    G06422641Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the knock sensor (B).
  5. Install the parts in the reverse order of removal.
