CMP Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing belt (see TIMING BELT INSPECTION (+).
  2. Remove the front camshaft pulley (CMP sensor pulse plate) (A).

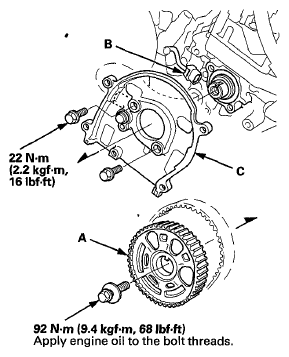

    Fig 1: CMP Sensor Pulse Plate And CMP Sensor Connector With Torque Specifications
    G06422638Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the CMP sensor connector (B), then remove the back cover (C).
  4. Remove the CMP sensor (A) from the back cover.

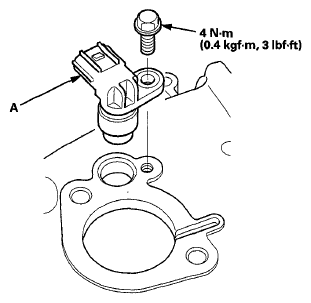

    Fig 2: CMP Sensor With Torque Specifications
    G06422639Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal. Install the timing belt (see TIMING BELT INSTALLATION (+).
  6. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN (+).
