CKP Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift.
    NOTE: Make sure the vehicle is level, because engine oil will drip out when you remove the sensor.
  2. Remove the CKP sensor cover (A).

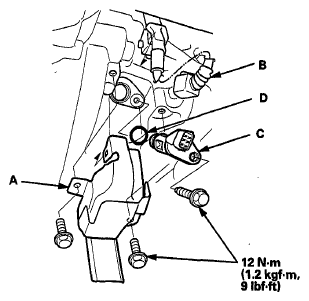

    Fig 1: CKP Sensor Cover And CKP Sensor Connector With Torque Specifications
    G06422640Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the CKP sensor connector (B).
  4. Remove the CKP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
  6. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN (+).
  7. Check the engine oil level, and add more oil if needed.
