Front Rocker Arm Oil Control Valve Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front rocker arm assembly (see ROCKER ARM ASSEMBLY REMOVAL  ).
  2. Remove the front rocker arm oil control valve (A).

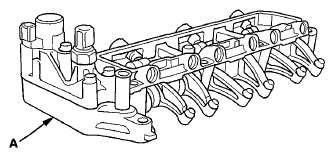

    Fig 1: Identifying Front Rocker Arm Oil Control Valve
    G06422266Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the front rocker arm oil control valve in the reverse order of removal.
    NOTE: When installing the front rocker arm assembly, refer to Camshaft, Rocker Arm Assembly, Camshaft Seal, and Pulley Installation  ).
