2WD model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION  ).
  2. Remove the reservoir (A).

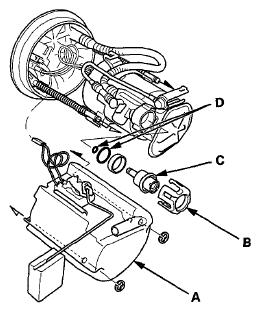

    Fig 1: Identifying Reservoir And Fuel Pressure Regulator
    G06422885Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bracket (B).
  4. Remove the fuel pressure regulator (C).
  5. Install the parts in the reverse order of removal with new O-rings (D) and a new bracket. When installing the fuel tank unit, align the marks on the unit and the fuel tank (see INSTALLATION (2WD MODEL)  ).
    NOTE:
    • Coat the O-rings with clean engine oil; do not use any other oils or fluids.
    • Do not pinch the O-rings during installation.
    • Use all the new parts supplied in the pressure regulator replacement kit.
